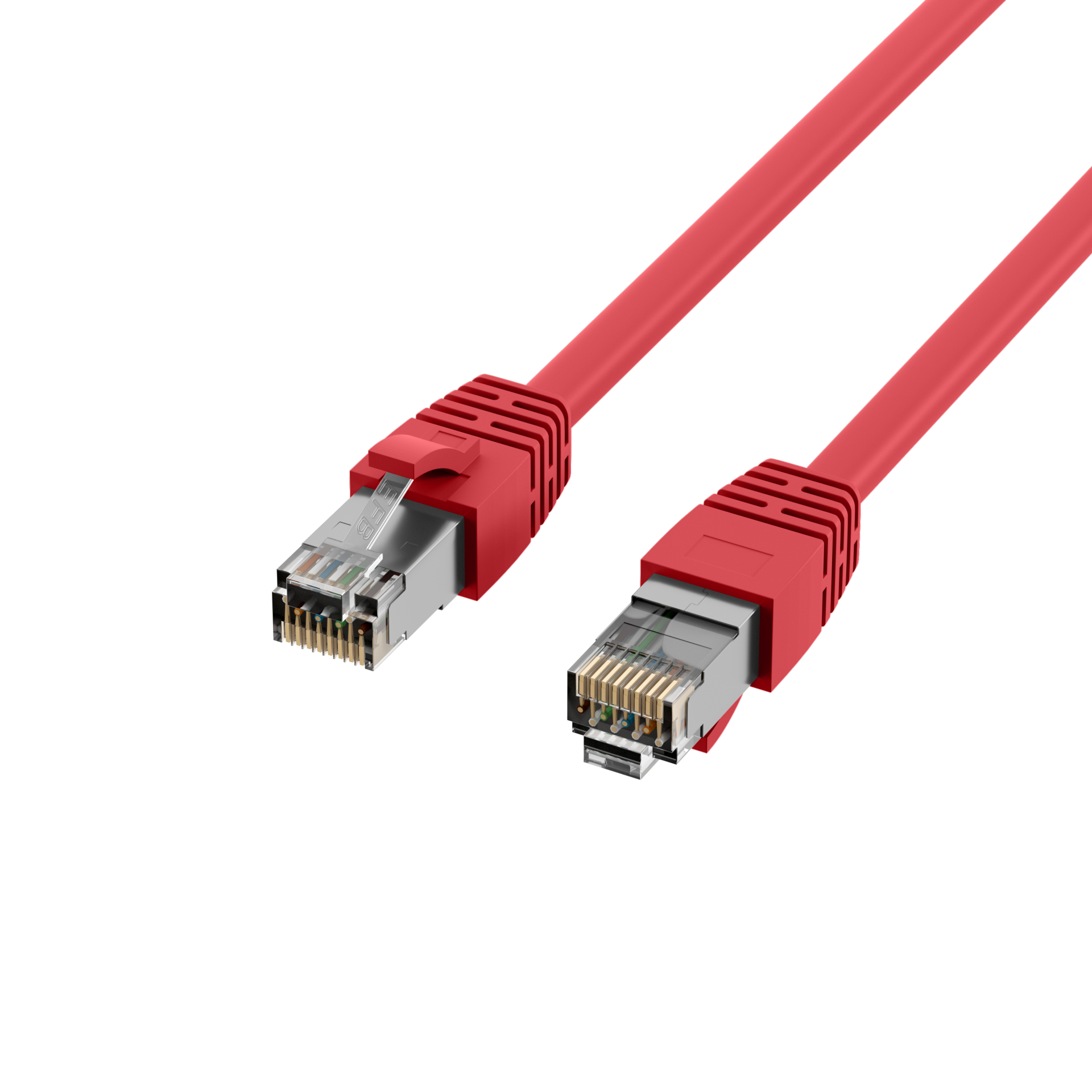

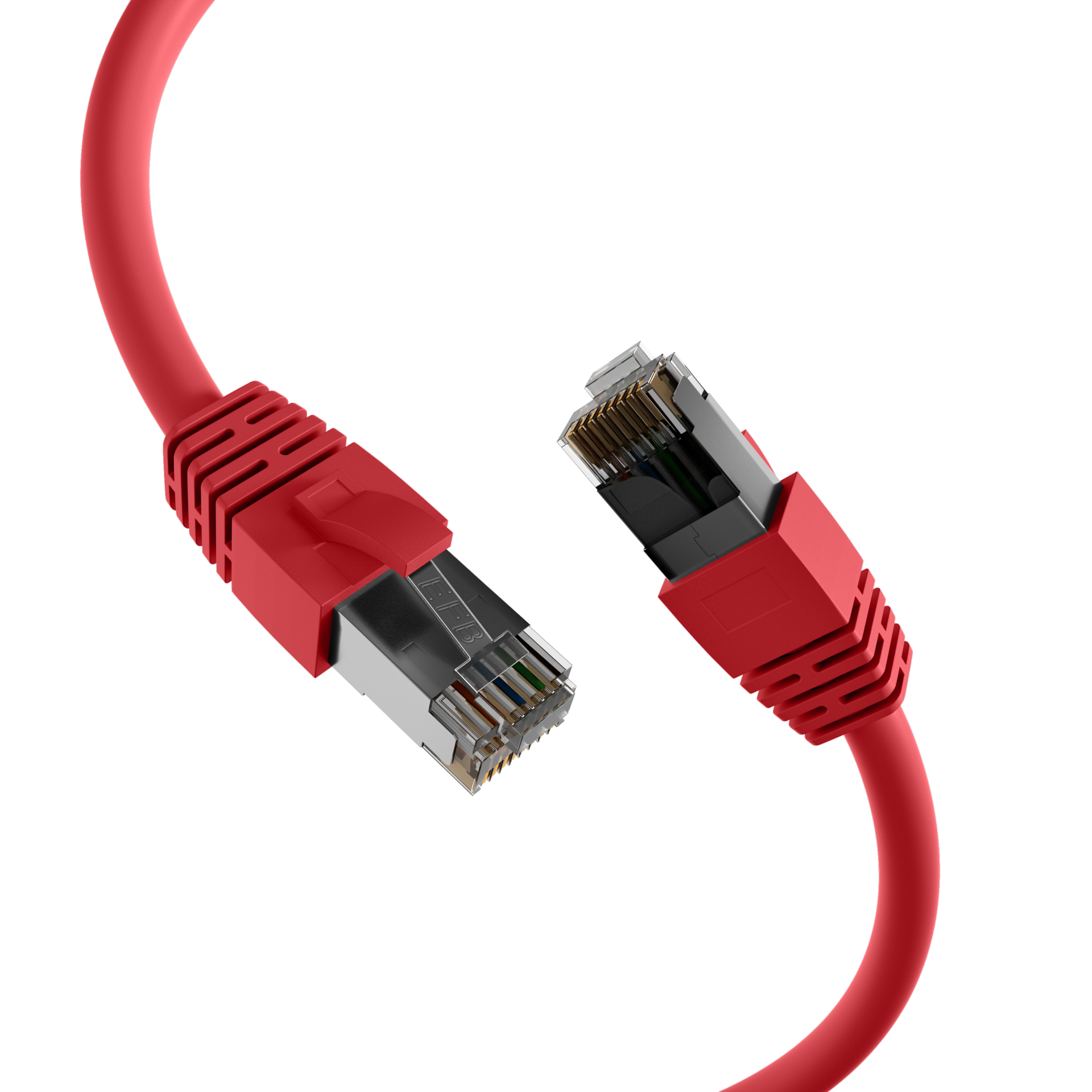

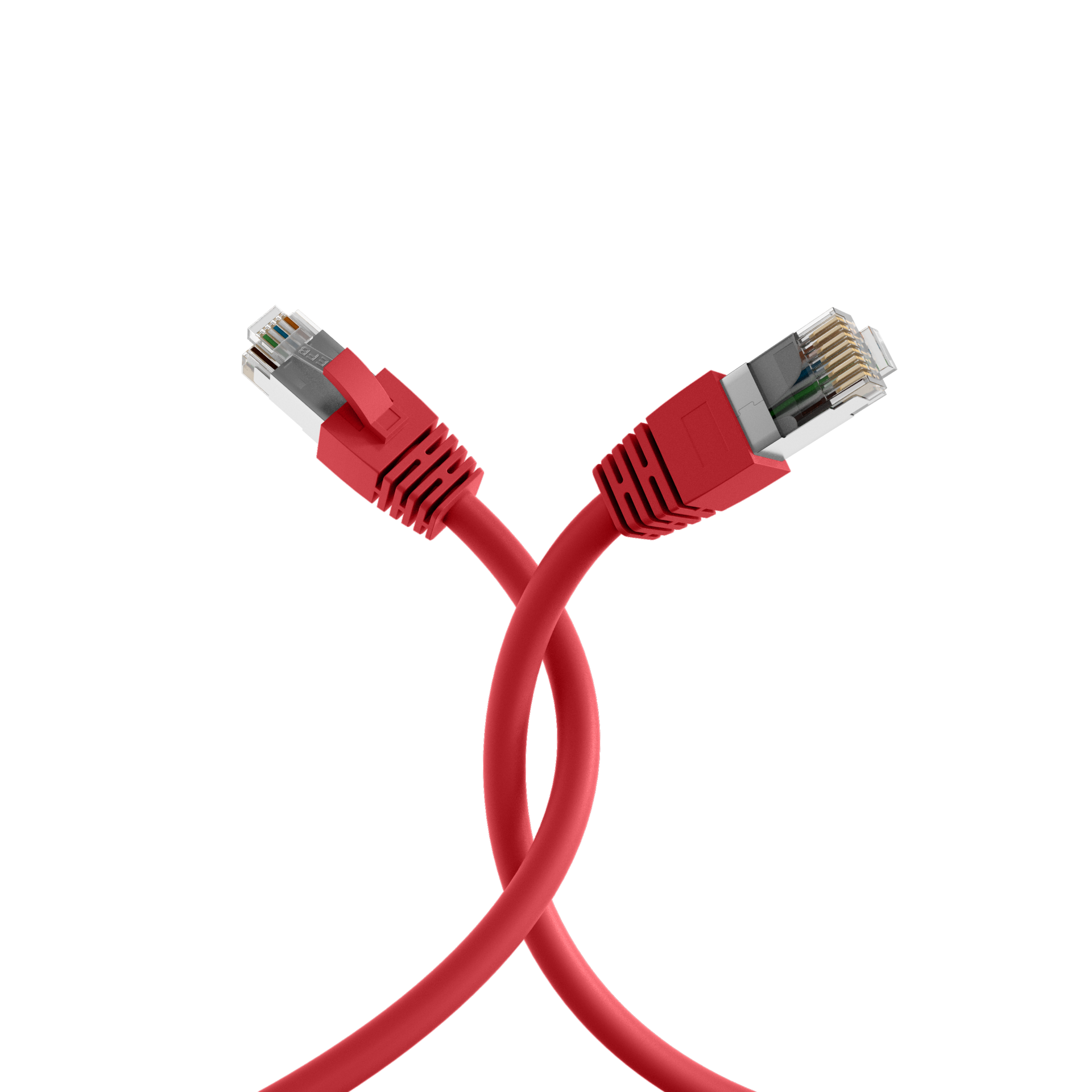

Name: RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 1m
Brand: EFB-Elektronik
SKU: K5528RT.1
Availability: InStock

RJ45 Patch Cord Cat.8.1 S/FTP BC red

RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 1m

Item number: K5528RT.1

EAN no.: 4049759215491

Length

Please log in to view and order prices.

Get notified when the product is back in stock:

Please enable JavaScript

You need JavaScript to submit this form because of the CAPTCHA verification.

Description

Product information for RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 1m

RJ45 patch cable Cat.8.1 S/FTP LSZH BC

The Cat.8.1 patch cable enables 25Gbit and 40Gbit Ethernet as a transmission standard and has gold-plated contacts.

Technical product properties
• Cat.8.1
• S/FTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts

The jacket of the shielded The patch cable is made of halogen-free LSZH material and has a length print on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.

The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the temperature range 0 - 60 °C.

The network cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This enables a bandwidth of 2000 MHz.

Technical properties

AWG-size:	24/7
Allocation:	acc. TIA/EIA 568B
Anti-kink sleeve:	moulded-on
Area of application:	Industrial Ethernet
Area of application:	Structured cabling
Area of application:	Data center
Bending radius:	>40 mm
Cable construction:	4x2
Cable shape:	rund
Cable type:	S/FTP
Cabling standard:	EN50173
Cabling standard:	ISO/IEC 11801
Cabling standard:	ANSI/TIA-568
Category:	8.1
Colour anti-kink sleeve:	red
Colour outer sheath:	red
Conductive shield:	Selected shield contact
Conductor Material:	Copper
Connector:	IEC 60603-7-81
Connector type:	RJ45 standard
Contact Resistance:	5 mΩ
Contacts:	Gold plated
Current capacity:	max. 1 A
Fire retardant version:	acc. IEC60332-1
Halogen free:	acc. IEC60754-2
Harmonised Standard:	EN 50575
Impedance:	100 ±15 Ω
Insulation Resistance:	10 MΩ
Jacket material:	LSZH
Length imprint:	True
Locking lever:	True
Mating cycles:	≥750
Model:	shielded
Oil resistant:	no
Operating-/ tempering voltage:	max. 50 V DC
Operating Temperature:	0 – 60 °C
Outer diameter of the cable:	8 mm
Ozone resistance:	No
Pin assignment:	1:1
Printing:	CAT8 S/FTP 4x2x24AWG/7 LSZH 2000MHz ISO11801
Resistant to chemicals:	False
Suitable for degree of protection (IP):	IP20
Tape width:	2000MHz
Test voltage:	1000 (V DC, 1min) core/core und core/screen
Transmission:	40Gbit
Type of connector connection 1:	RJ45 8(8)
Type of connector connection 2:	RJ45 8(8)
UL approbated:	False
UV resistant:	no

Variants

Item no.	Name	Length	POE class	Length tolerance
K5528RT.0,5	RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 0,5m	0.5 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Select variants
K5528RT.1	RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 1m	1.0 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Select variants
K5528RT.2	RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 2m	2.0 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Select variants
K5528RT.3	RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 3m	3.0 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Select variants
K5528RT.5	RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 5m	5.0 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Select variants
K5528RT.7,5	RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 7,5m	7.5 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Select variants
K5528RT.10	RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 10m	10.0 m	PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Select variants
