Splice box 19 inch assembled
Back

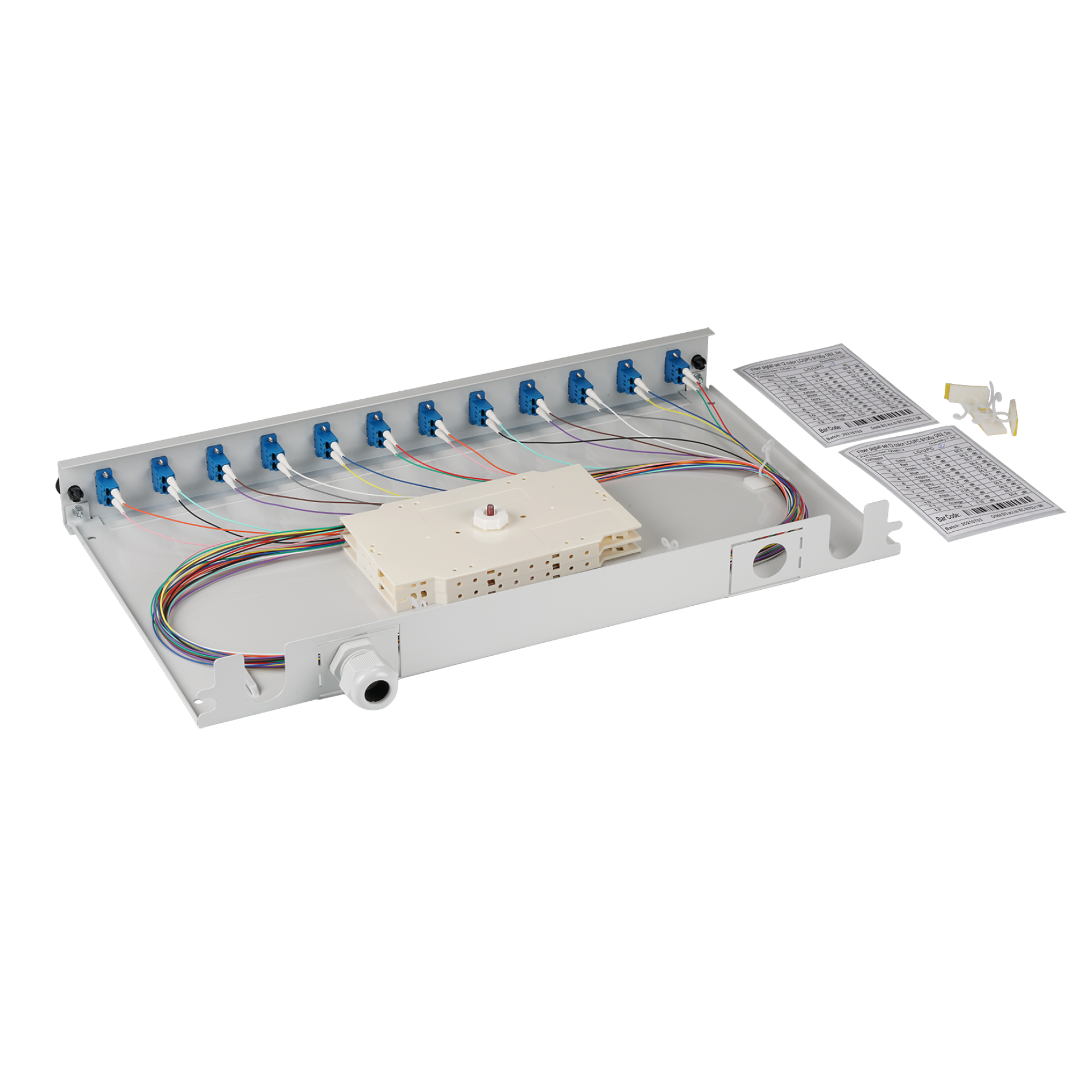

Splice box LC-APC 9/125µ OS2 extendable

Splice box LC-APC 9/125µ OS2 extendable, 24 pigtails/ 12 adapters
Splice box LC-APC 9/125µ OS2 extendable, 24 pigtails/ 12 adapters
Splice box LC-APC 9/125µ OS2 extendable, 24 pigtails/ 12 adapters
Splice box LC-APC 9/125µ OS2 extendable, 24 pigtails/ 12 adapters
Splice box LC-APC 9/125µ OS2 extendable, 24 pigtails/ 12 adapters
Item number: BA71920L24
EAN no.: 4049759330194
Pigtail
Suitable for number of couplings/adapters
Type of connector external
Unique
With number of couplings/adapters
Piece
Log in as a customer
Description

Product information for Splice box LC-APC 9/125µ OS2 extendable, 24 pigtails/ 12 adapters

completely assembled splice box with adapters and coloured pigtails
metal housing depth adjustable
cable entries at the rear
Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
Technical properties

Technical properties

Adapter material: Kunststoffkupplung
Adapters: LC
Depth: 244,0 mm
Extendable: ausziehbar
Fibre class: OS2 gemäß ITU-T G.652.D
Fibre type: Singlemode 9/125
Height: 44,5 mm
Mounting method: 482,6 mm (19 Zoll)-Einbau
Note: senkrecht
Number of height units: 1 HE
Pigtails prepared: abgesetzt
Width: 483,0 mm
With Pigtail: Ja
With front plate: Ja
With housing: Ja
Variants

Variants

Item no. Name Type of connector external Color Pigtail Suitable for number of couplings/adapters With number of couplings/adapters RAL-Nummer Steckverbindertyp innen Kupplungsfarbe Unique
BA71920L12 Splice box LC-APC 9/125µ OS2 extendable, 12 pigtails stripped/ 6 adapters LC-Duplex grey 12 x LC/APC 12 6 7035 LC-Duplex grün -
Select variants
BA71920L24 Splice box LC-APC 9/125µ OS2 extendable, 24 pigtails/ 12 adapters - - - - - - - - Unique
Select variants
