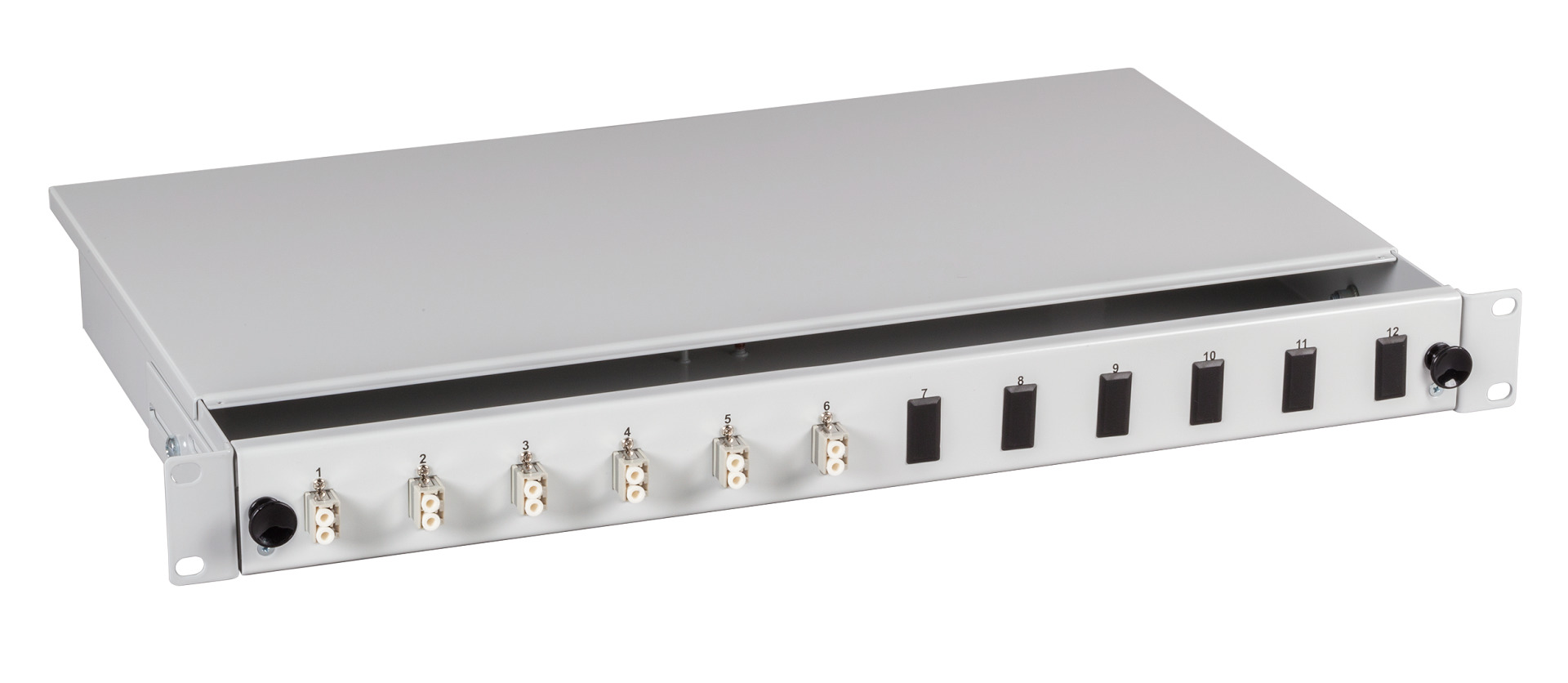

Splicebox with LC-Duplex plastic adapter and pigtails, OM4
Prices only visible for logged in users
Splicebox bk LC 50/125µ OM4 not exentable 12 Pigtails/6 Adapter
Item number:
B70901TS.12OM4
EAN no.:
4049759173449
Product information for Splicebox bk LC 50/125µ OM4 not exentable 12 Pigtails/6 Adapter
completely assembled splice box with adapters and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | LC |
| Depth: | 244.0 mm |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Sliding: | non sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Suitable for number of couplings/adapters | With number of couplings/adapters | Pigtail | Type of connector external | Colour | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| B70901.12OM4 | Splicebox LC 50/125µ OM4 not extendable 12 Pigtails/6 Adapter | 12 | 6 | 12 x LC | LC-duplex | grey | 7035 | LC-Duplex | violett | |
| B70901.24OM4 | Splicebox LC 50/125µ OM4 not extendable 24 Pigtails/12 Adapter | 12 | 12 | 24 x LC | LC-duplex | grey | 7035 | LC-Duplex | violett | |
| B70901.48OM4 | Splicebox LC 50/125µ OM4 not extendable 48 Pigtails/24 Adapter | 24 | 24 | 48 x LC | LC-duplex | grey | 7035 | LC-Duplex | violett | |
| B70901TS.12OM4 | Splicebox bk LC 50/125µ OM4 not exentable 12 Pigtails/6 Adapter | 12 | 6 | 12 x LC | LC-Duplex | black | 9005 | LC-Duplex | violett | |
| B70901TS.24OM4 | Splicebox bk LC 50/125µ OM4 not extendable 24 Pigtails/12 Adapter | 12 | 12 | 24 x LC | LC-Duplex | black | 9005 | LC-Duplex | violett | |
| B70901TS.48OM4 | Splicebox bk LC 50/125µ OM4 not extendable 48 Pigtails/24 Adapter | 24 | 24 | 48 x LC | LC-Duplex | black | 9005 | LC-Duplex | violett |
