Splicebox with E2000® plastic adapter and pigtails, OM2
Prices only visible for logged in users

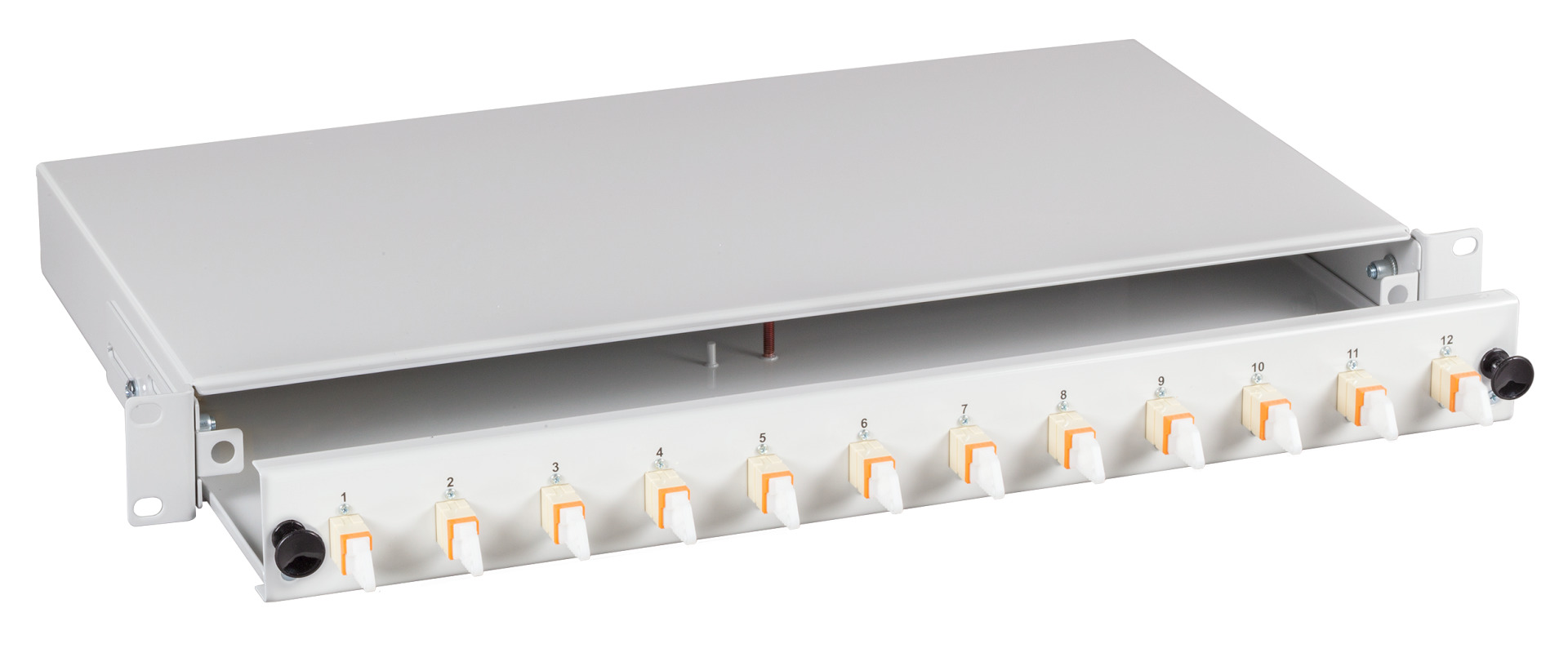

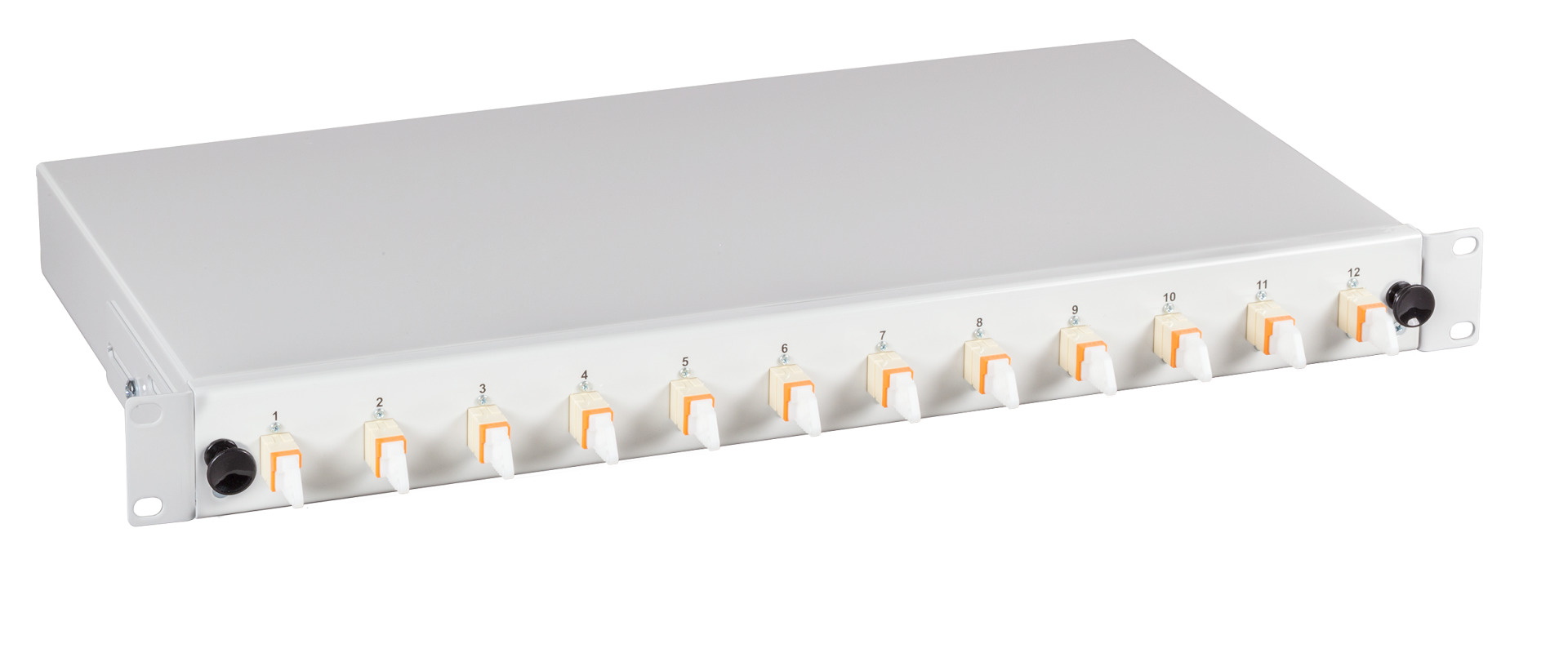

Splicebox E2000® 50/125µ OM2 not extendable 24 Pigtails/24 Adapter
Item number:
B70503.24
EAN no.:
4049759041427
Product information for Splicebox E2000® 50/125µ OM2 not extendable 24 Pigtails/24 Adapter
completely assembled splice box with adapters and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | E2000® |
| Depth: | 244.0 mm |
| Fibre class: | OM2 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Sliding: | non sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Colour | Type of connector external | With number of couplings/adapters | Suitable for number of couplings/adapters | Pigtail | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| B70503.12 | Splicebox E2000® 50/125µ OM2 not extendable 12 Pigtails/12 Adapter | grey | E2000® | 12 | 12 | 12 x E2000® | 7035 | E2000® | beige | |
| B70503.24 | Splicebox E2000® 50/125µ OM2 not extendable 24 Pigtails/24 Adapter | grey | E2000® | 24 | 24 | 24 x E2000® | 7035 | E2000® | beige |
