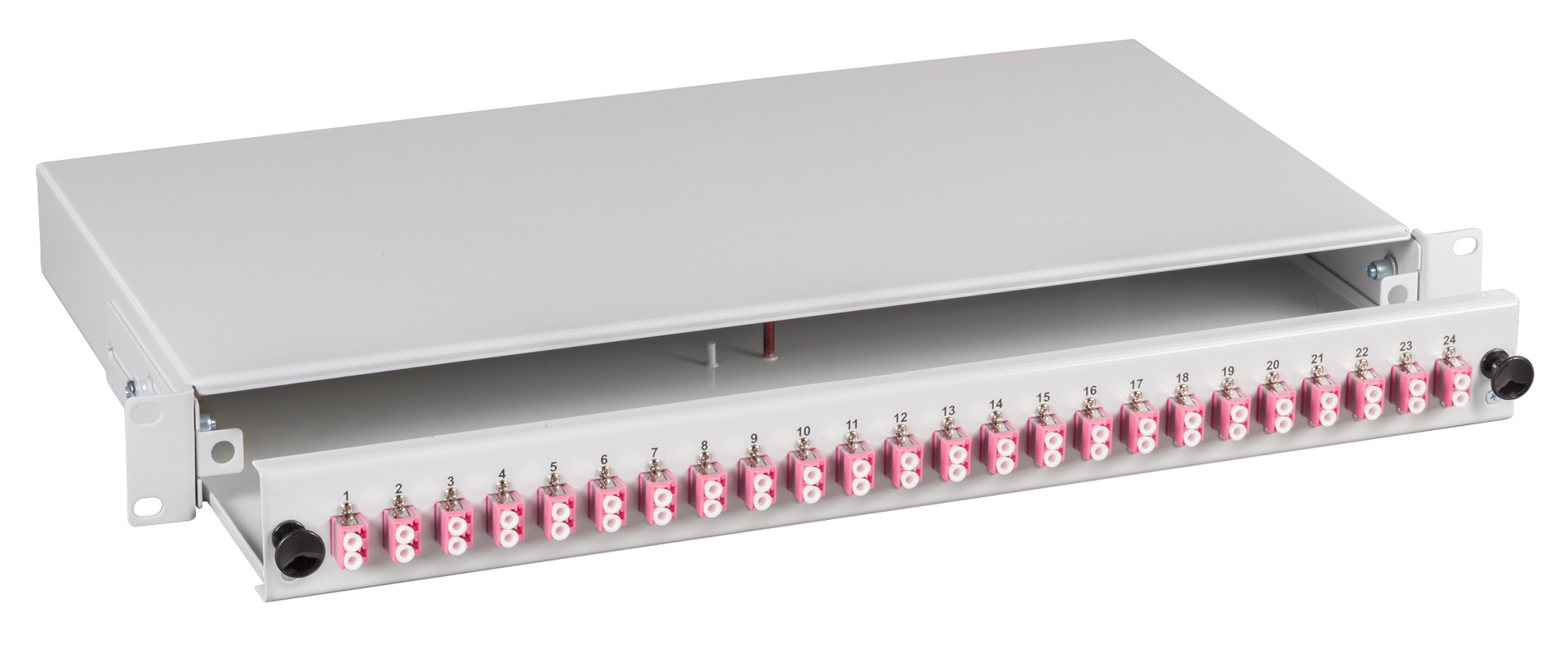

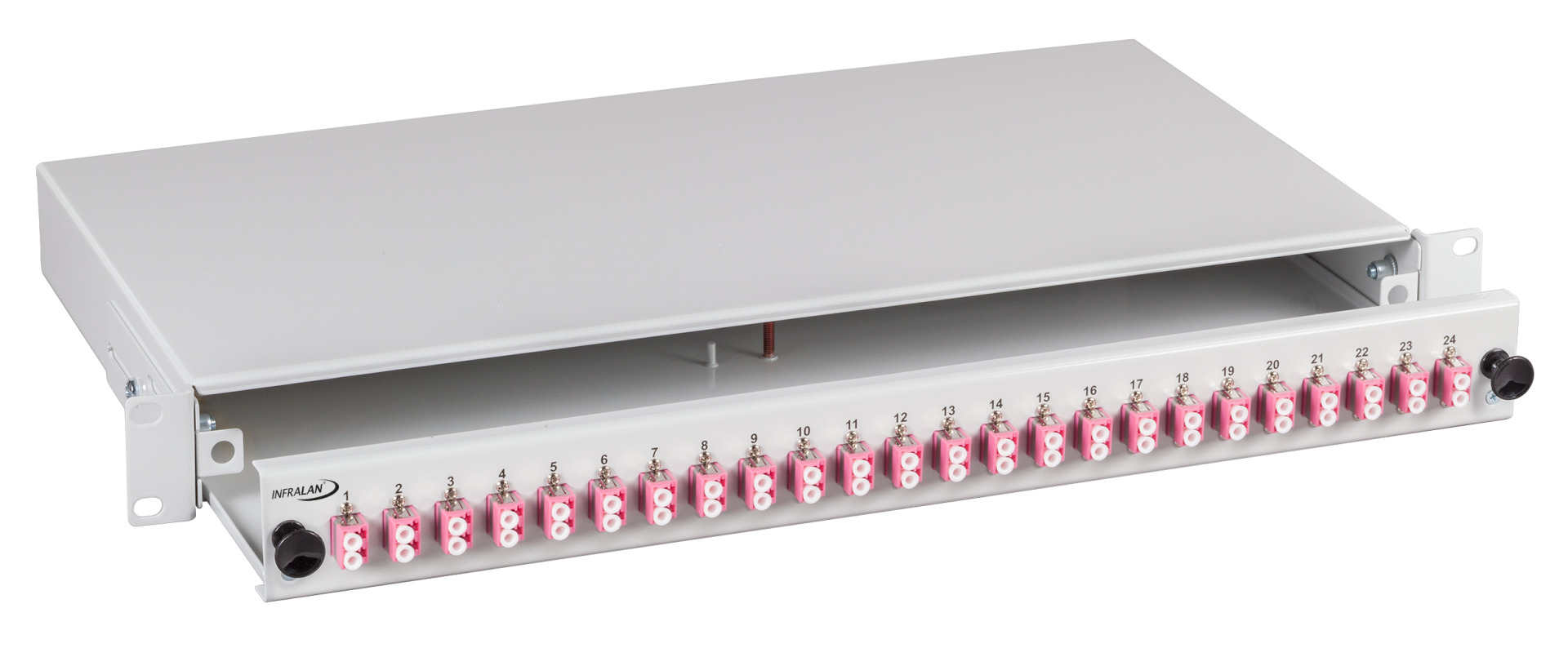

Splicebox with LC-Duplex plastic adapter and pigtails, OM2

Prices only visible for logged in users

Splicebox LC 50/125µ OM2 not extendable 48 Pigtails/24 Adapter
Item number: B70901.48
EAN no.: 4049759109967
Piece

Product information for Splicebox LC 50/125µ OM2 not extendable 48 Pigtails/24 Adapter

completely assembled splice box with adapters and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!

Technical properties

Adapter material: Plastic adapter
Adapters: LC
Depth: 244.0 mm
Fibre class: OM2
Fibre type: Multi mode 50/125
Height: 44.5 mm
Mounting method: 482.6 mm (19 inch) mounting
Number of height units: 1 U
Pigtails prepared: not stripped
Sliding: non sliding version
Width: 483.0 mm
With front plate: True
With housing: True
With pigtails: True

Variants

Item no. Name Suitable for number of couplings/adapters Type of connector external Colour With number of couplings/adapters Pigtail RAL-Nummer Steckverbindertyp innen Kupplungsfarbe
B70901.12 Splicebox LC 50/125µ OM2 not extendable 12 Pigtails/6 Adapter 12 LC-duplex grey 6 12 x LC 7035 LC-Duplex beige
B70901.24 Splicebox LC 50/125µ OM2 not extendable 24 Pigtails/12 Adapter 12 LC-duplex grey 12 24 x LC 7035 LC-Duplex beige
B70901.48 Splicebox LC 50/125µ OM2 not extendable 48 Pigtails/24 Adapter 24 LC-duplex grey 24 48 x LC 7035 LC-Duplex beige
B70901TS.12 Splicebox bk LC 50/125µ OM2 not extendable 12 Pigtails/6 Adapter 12 LC-duplex black 6 12 x LC 9005 LC-Duplex beige
B70901TS.24 Splicebox bk LC 50/125µOM2 not extendable 24 Pigtails/12 Adapter 12 LC-duplex black 12 24 x LC 9005 LC-Duplex beige
