Splicebox sliding unit with LC-Duplex plastic adapter and pigtails, OM5
Prices only visible for logged in users
Splicebox LC 50/125µ OM5 extendbale 48 Pigtails/24 Adapter
Item number:
B71901.48OM5
EAN no.:
4049759192129
Product information for Splicebox LC 50/125µ OM5 extendbale 48 Pigtails/24 Adapter

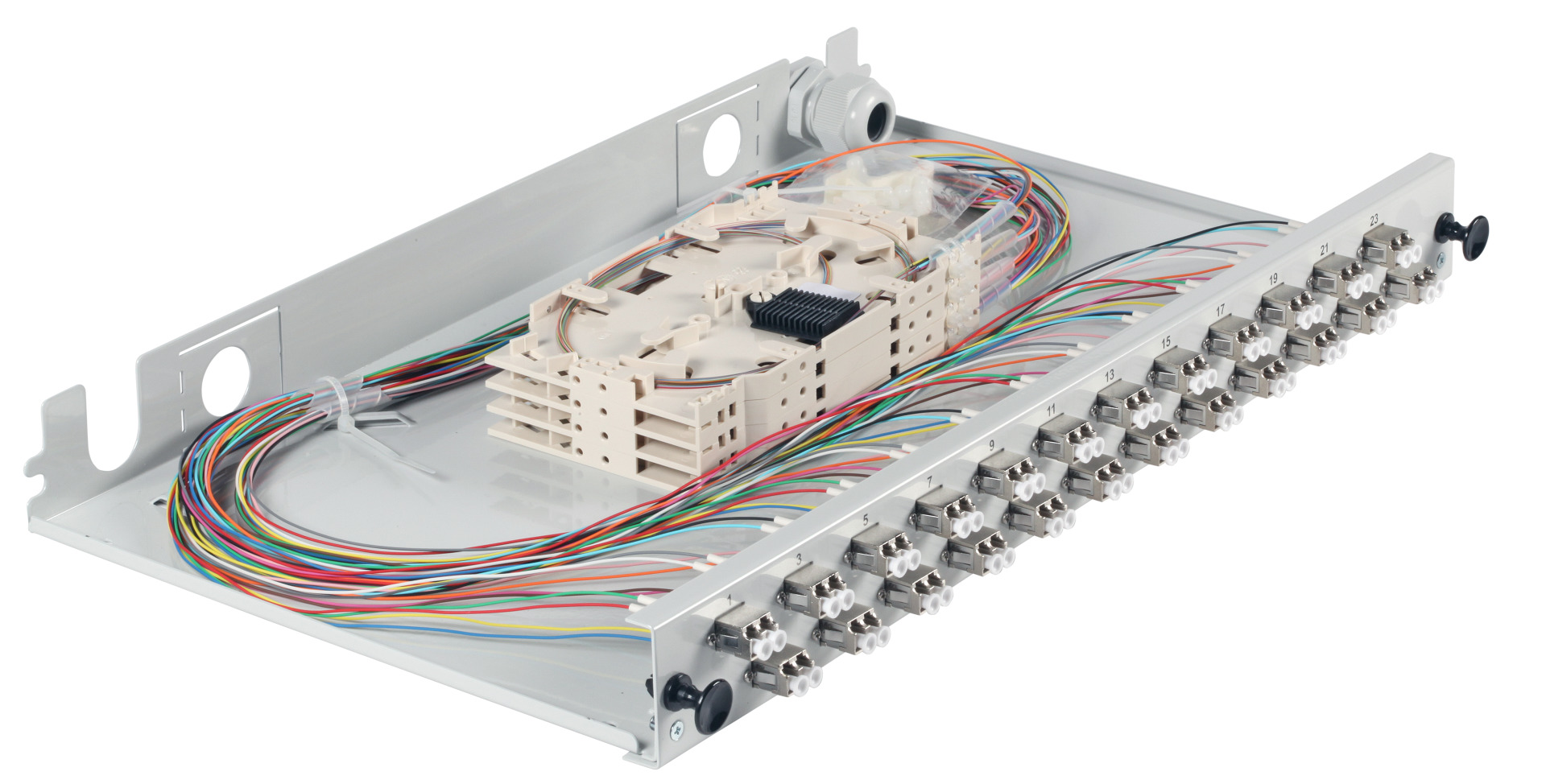

completely assembled splice box with adapters and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16

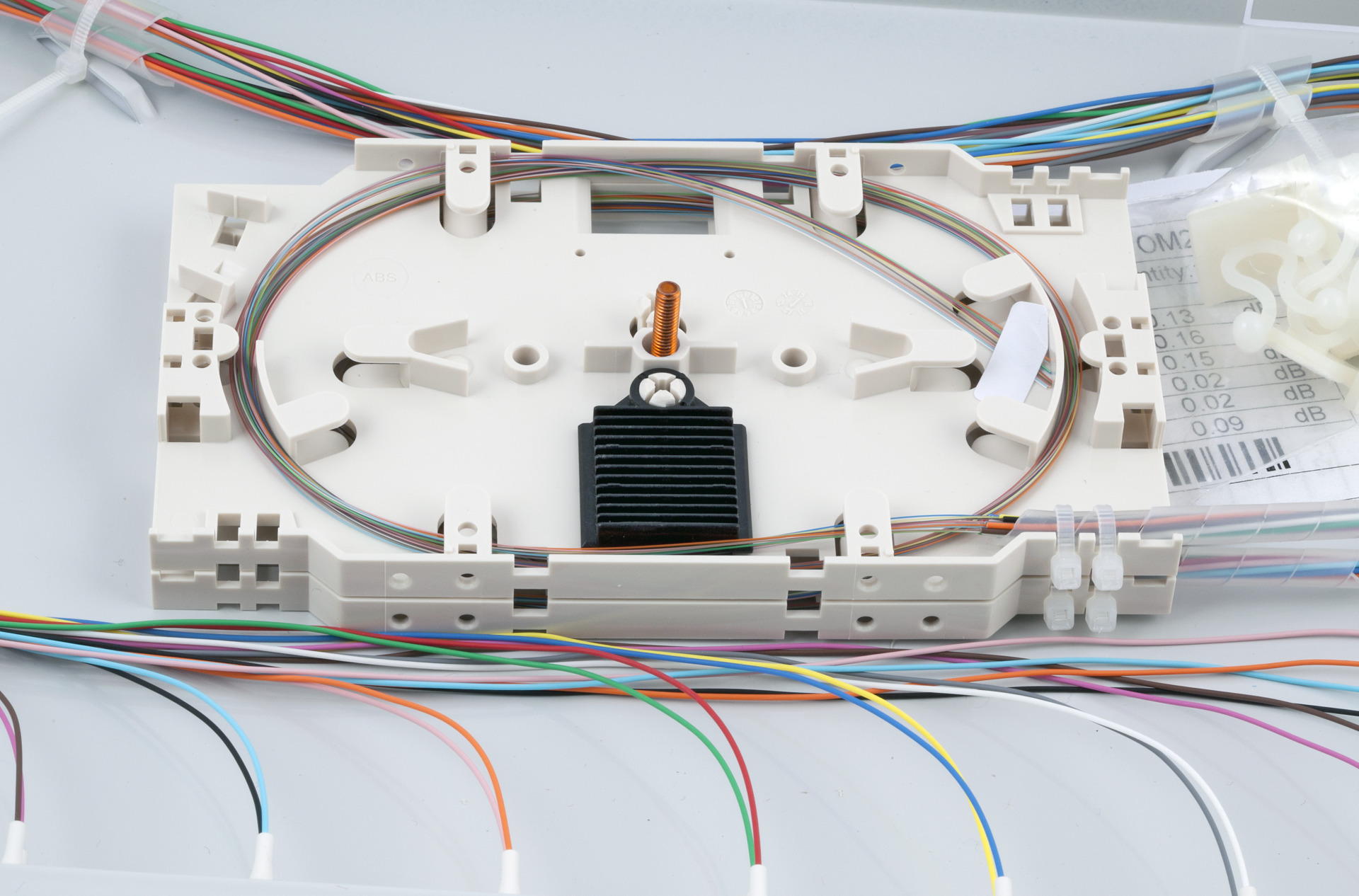

6 x self adhesive fiber tray
Special assembly possible at short notice!
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | LC |
| Depth: | 244.0 mm |
| Fibre class: | OM5 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Sliding: | sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Type of connector external | Colour | Suitable for number of couplings/adapters | With number of couplings/adapters | Pigtail | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71901.12OM5 | Splicebox LC 50/125µ OM5 extendable 12 Pigtails/6 Adapter | LC-Duplex | grey | 12 | 6 | 12 x LC | 7035 | LC-Duplex | limettengrün | |
| B71901.24OM5 | Splicebox LC 50/125µ OM5 extendable 24 Pigtails/12 Adapter | LC-Duplex | grey | 24 | 12 | 24 x LC | 7035 | LC-Duplex | limettengrün | |
| B71901.48OM5 | Splicebox LC 50/125µ OM5 extendbale 48 Pigtails/24 Adapter | LC-Duplex | grey | 48 | 24 | 48 x LC | 7035 | LC-Duplex | limettengrün |
