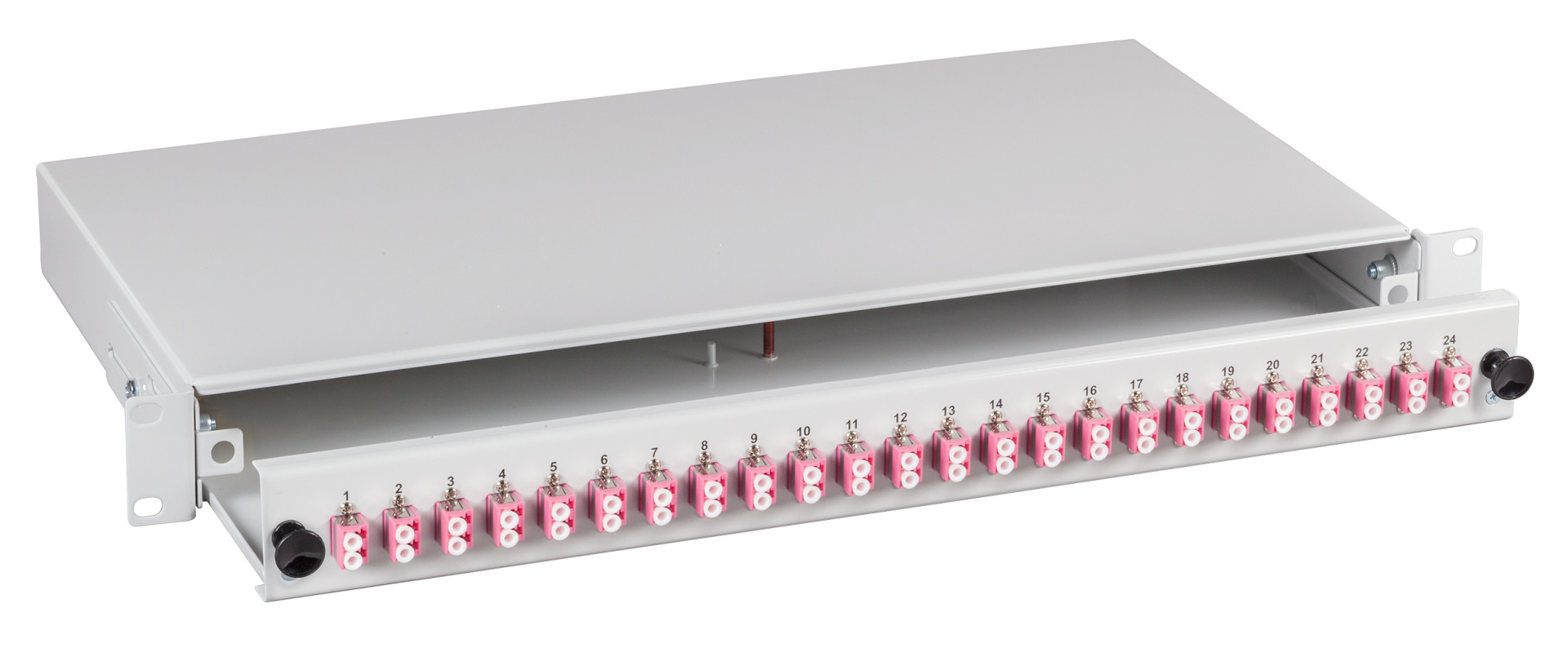

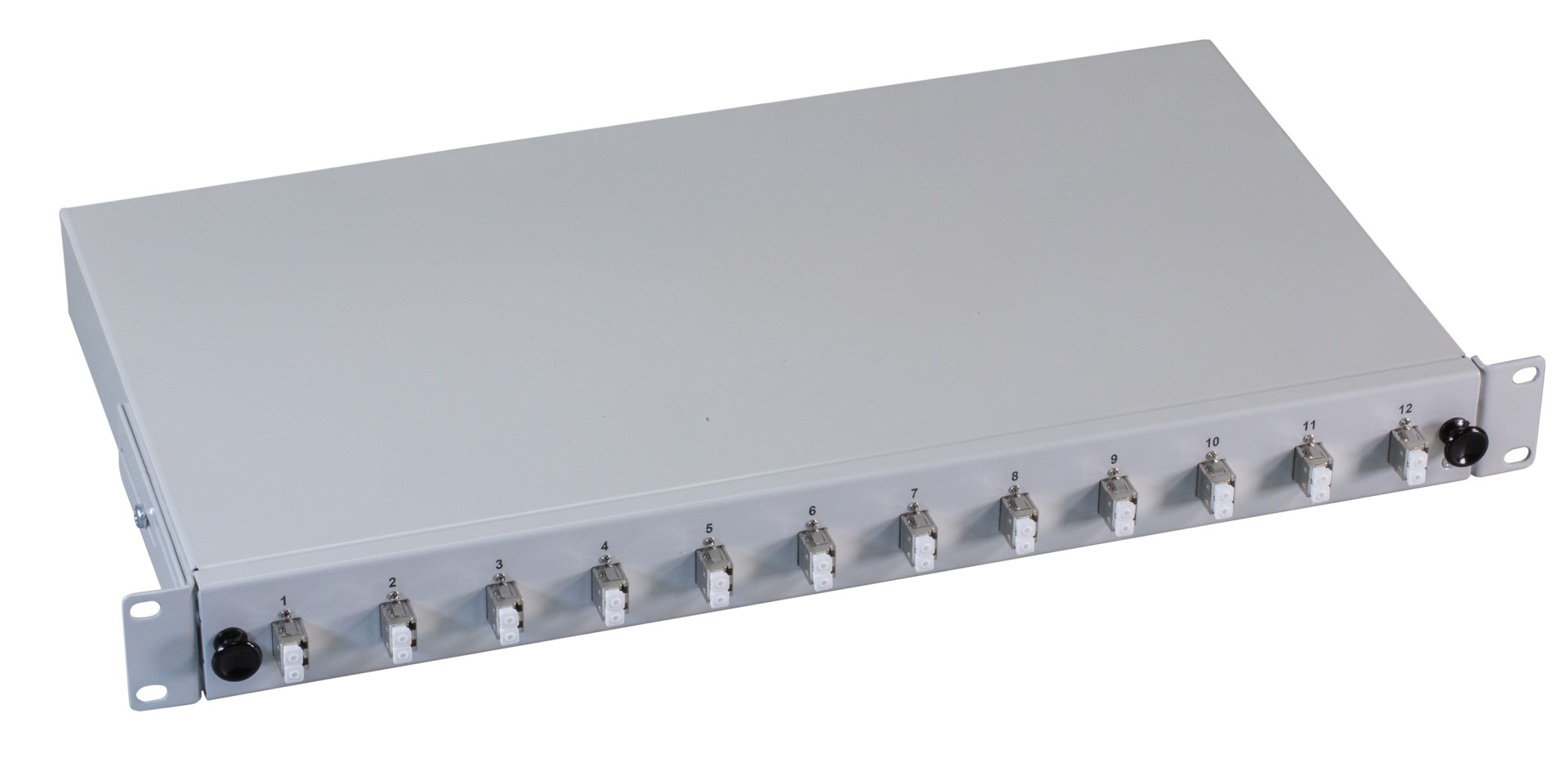

Splicebox sliding unit, with LC-Duplex metal adapter and pigtails, OS2
Prices only visible for logged in users
Splicebox LC 9/125µ OS2 extendable 12 Pigtails/6 Adapter
Item number:
B71922.12
EAN no.:
4049759086114
Product information for Splicebox LC 9/125µ OS2 extendable 12 Pigtails/6 Adapter

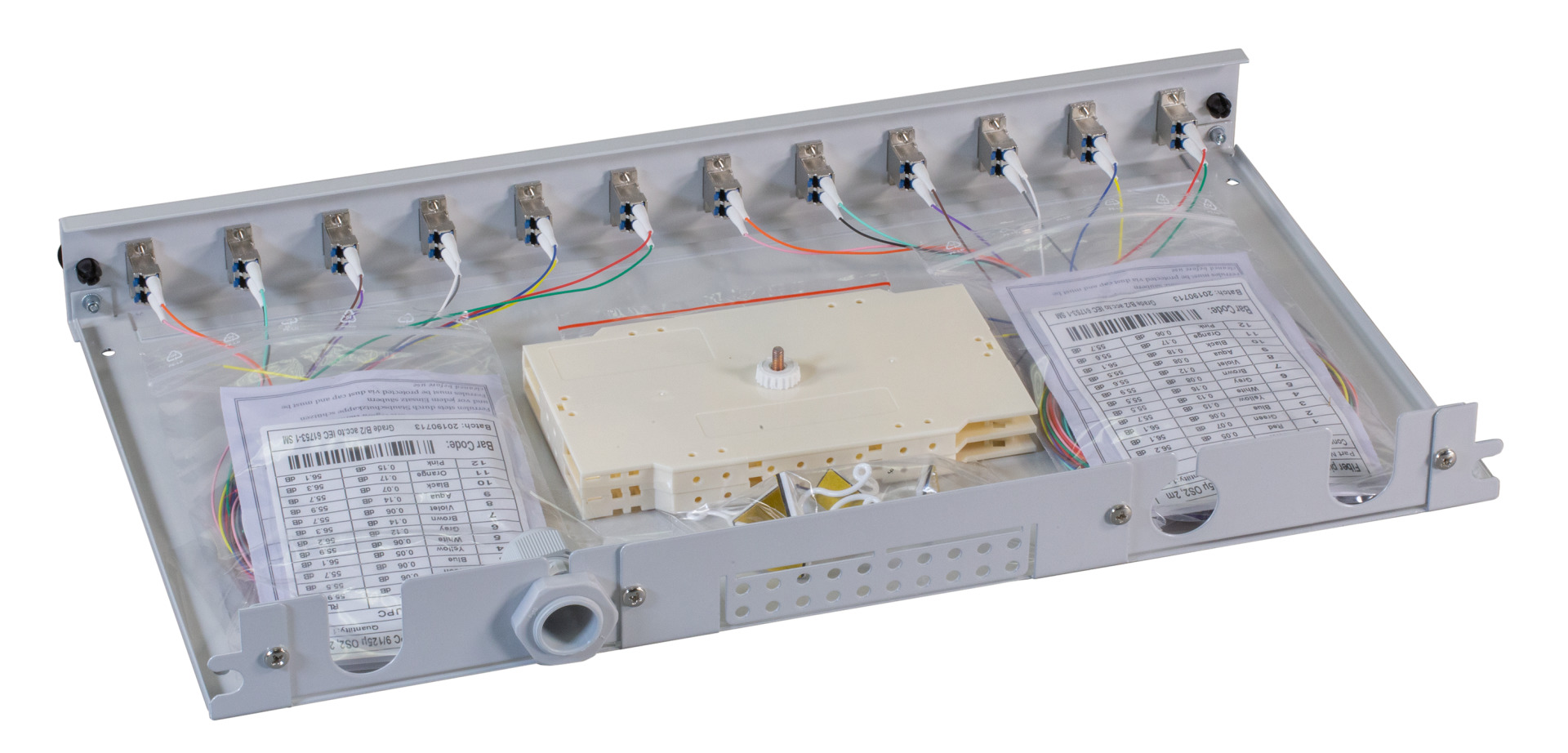

completely assembled splice box with adapters and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Metall adapter |
|---|---|
| Adapters: | LC |
| Depth: | 244.0 mm |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Sliding: | sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Suitable for number of couplings/adapters | With number of couplings/adapters | Type of connector external | Pigtail | Colour | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71922.12 | Splicebox LC 9/125µ OS2 extendable 12 Pigtails/6 Adapter | 12 | 6 | LC-Duplex | 12 x LC | grey | 7035 | LC-Duplex | metall | |
| B71922.24 | Splicebox LC 9/125µ OS2 extendable 24 Pigtails/12 Adapter | 12 | 12 | LC-Duplex | 24 x LC | grey | 7035 | LC-Duplex | metall | |
| B71922.48 | Splicebox LC 9/125µ OS2 extendable 48 Pigtails/24 Adapter | 24 | 24 | LC-Duplex | 48 x LC | grey | 7035 | LC-Duplex | metall | |
| B71922TS.24 | Splicebox bk LC 9/125µ OS2 extendable 24 Pigtails/12 Adapter | 12 | 12 | LC-Duplex | 24 x LC | black | 9005 | LC-Duplex | metall | |
| B71922TS.48 | Splicebox bk LC 9/125µ OS2 extendable 48 Pigtails/24 Adapter | 24 | 24 | LC-Duplex | 48 x LC | black | 9005 | LC-Duplex | metall | |
| B71924.12 | Splicebox LC-APC 9/125µ OS2 extendable 12 Pigtails/6 Adapter | 12 | 6 | LC-Duplex | 12 x LC-APC | grey | 7035 | LC-Duplex | metall | |
| B71924.24 | Splicebox LC-APC 9/125µ OS2 extendable 24 Pigtails/12 Adapter | 12 | 12 | LC-Duplex | 24 x LC-APC | grey | 7035 | LC-Duplex | metall | |
| B71924.48 | Splicebox LC-APC 9/125µ OS2 extendable 48 Pigtails/24 Adapter | 24 | 24 | LC-Duplex | 48 x LC-APC | grey | 7035 | LC-Duplex | metall |
