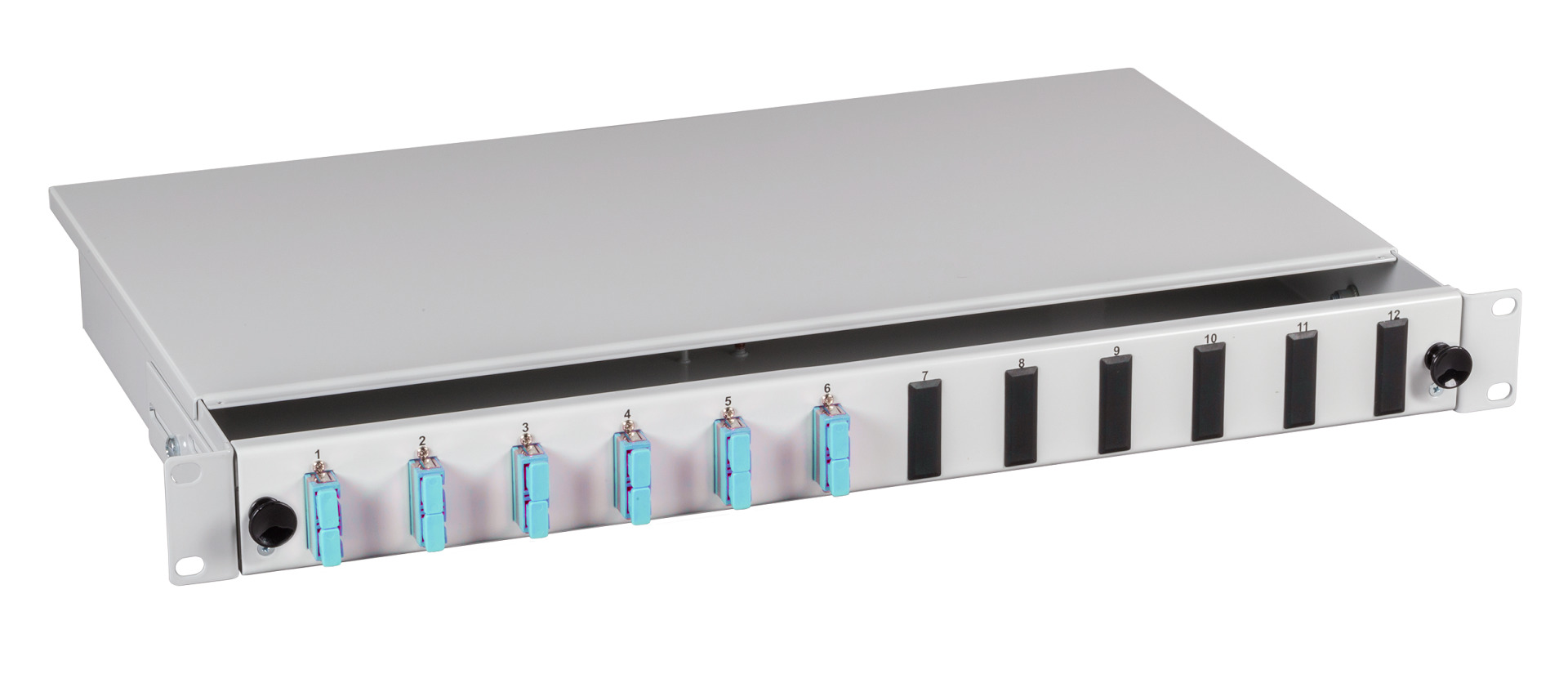

Splicebox with SC-Duplex plastic adapter and pigtails, OM2
Splicebox SC 50/125µ OM2 not extendable 12 Pigtails/6 Adapter
Item number:
B70203.12
EAN no.:
4049759041182
Product information for Splicebox SC 50/125µ OM2 not extendable 12 Pigtails/6 Adapter
completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC-Duplex |
| Depth: | 244.0 mm |
| Extendable: | non sliding version |
| Fibre class: | OM2 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Variants
| Item no. | Name | Color | Type of connector external | Pigtail | Suitable for number of couplings/adapters | With number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|---|
| B70203.12 | Splicebox SC 50/125µ OM2 not extendable 12 Pigtails/6 Adapter | grey | SC-Duplex | 12 x SC | 12 | 6 | 7035 | SC-duplex | beige | |
| B70203.24 | Splicebox SC 50/125µ OM2 not extendable 24 Pigtails/12 Adapter | grey | SC-Duplex | 24 x SC | 12 | 12 | 7035 | SC-duplex | beige | |

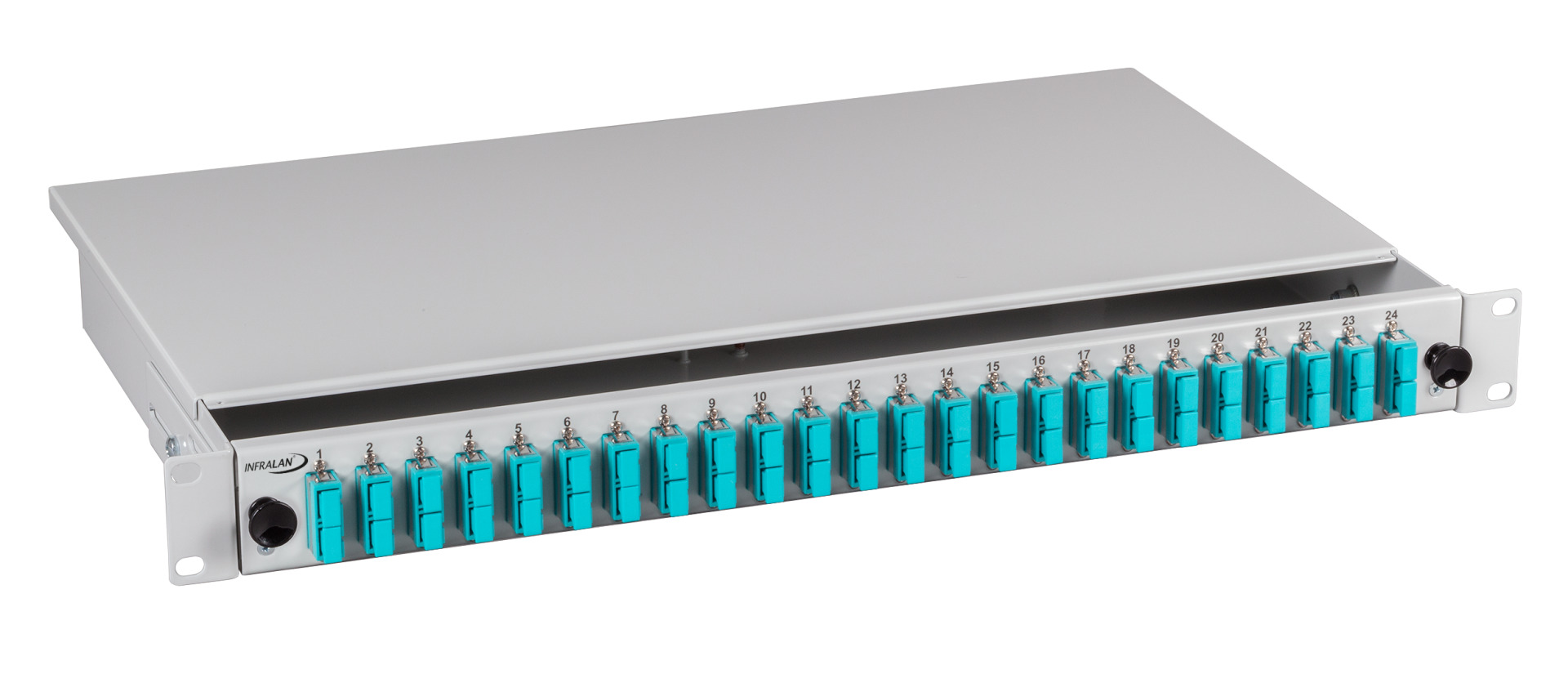

| B70203.48 | Splicebox SC 50/125µ OM2 not extendable 48 Pigtails/24 Adapter | grey | SC-Duplex | 48 x SC | 24 | 24 | 7035 | SC-duplex | beige | |
| B70203TS.12 | Splicebox bk SC 50/125µ OM2 not extendable 12 Pigtails/6 Adapter | black | SC-Duplex | 12 x SC | 12 | 6 | 9005 | SC-duplex | beige | |
| B70203TS.48 | Splicebox bk SC 50/125µ OM2 not extendable 48 Pigtails/24 Adapter | black | SC-Duplex | 48 x SC | 24 | 24 | 9005 | SC-duplex | beige |
