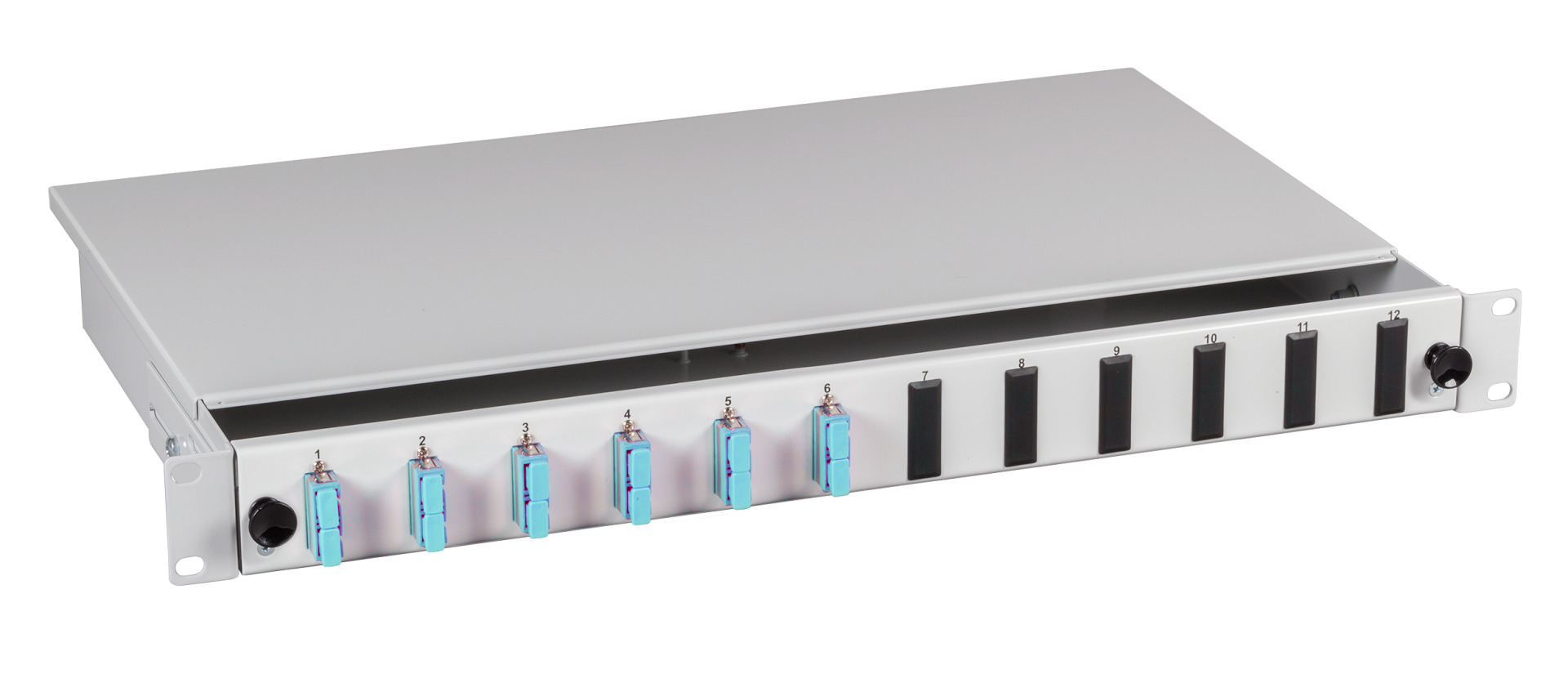

Splicebox with SC-Duplex plastic adapter and stripped pigtails, OS2
Prices only visible for logged in users
Splicebox SC 9/125µ OS2 not extendable 12 Pigtails stripped/6 Adapter
Item number:
BA70223.12
EAN no.:
4049759043339
Product information for Splicebox SC 9/125µ OS2 not extendable 12 Pigtails stripped/6 Adapter
completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC |
| Depth: | 244.0 mm |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | stripped |
| Sliding: | non sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Suitable for number of couplings/adapters | With number of couplings/adapters | Type of connector external | Colour | Pigtail | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| BA70223.12 | Splicebox SC 9/125µ OS2 not extendable 12 Pigtails stripped/6 Adapter | 12 | 6 | SC-duplex | grey | 12 x SC | 7035 | SC-Duplex | blau | |
| BA70223.24 | Splicebox SC 9/125µ OS2 not extendable 24 Pigtails stripped/12 Adapter | 12 | 12 | SC-duplex | grey | 24 x SC | 7035 | SC-Duplex | blau | |
| BA70223.48 | Splicebox SC 9/125µ OS2 not extendable 48 Pigtails stripped/24 Adapter | 24 | 24 | SC-duplex | grey | 48 x SC | 7035 | SC-Duplex | blau | |
| BA70228.12 | Splicebox SC-APC 9/125µ OS2 not extendable 12 Pigtails stripped/6 Adapter | 12 | 6 | SC-duplex | grey | 12 x SC/APC | 7035 | SC-Duplex | grün | |
| BA70228.24 | Splicebox SC-APC 9/125µ OS2 not extendable 24 Pigtails stripped/12 Adapter | 12 | 12 | SC-duplex | grey | 24 x SC-APC | 7035 | SC-Duplex | grün |
