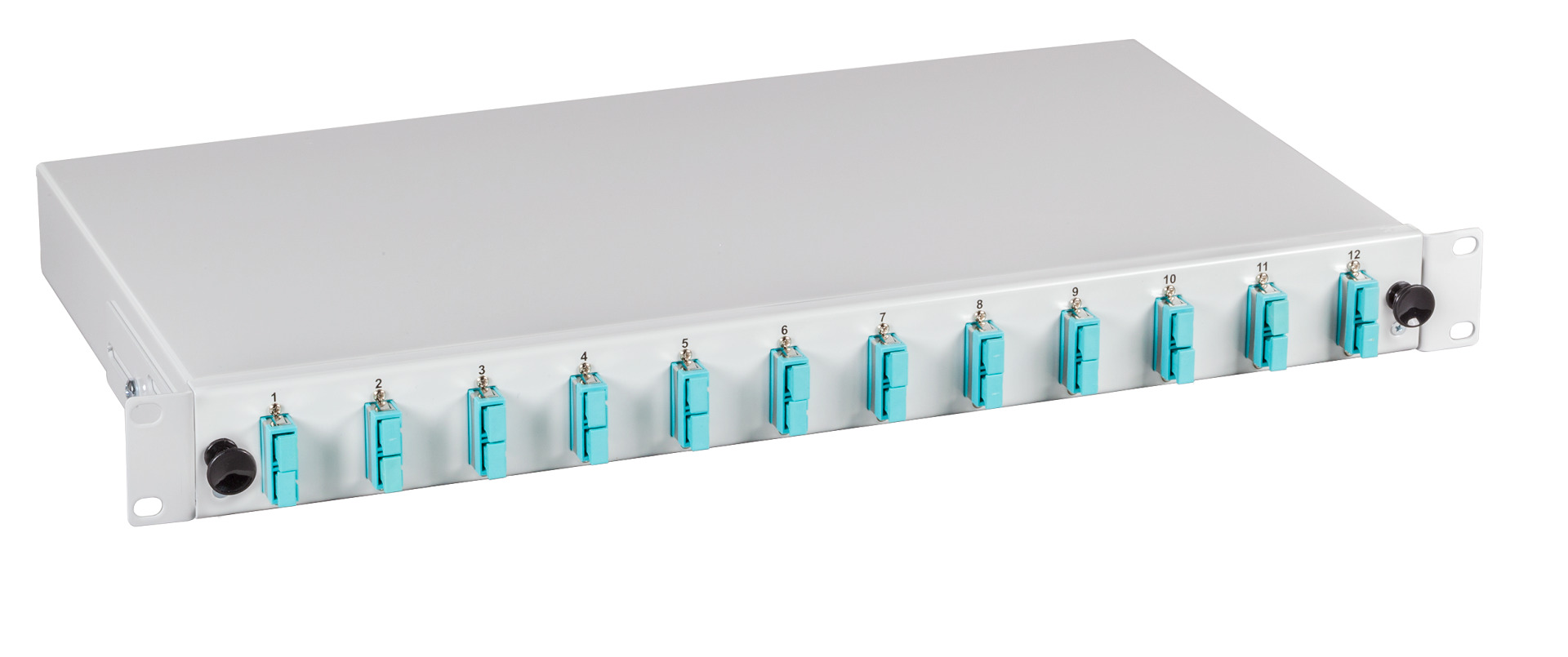

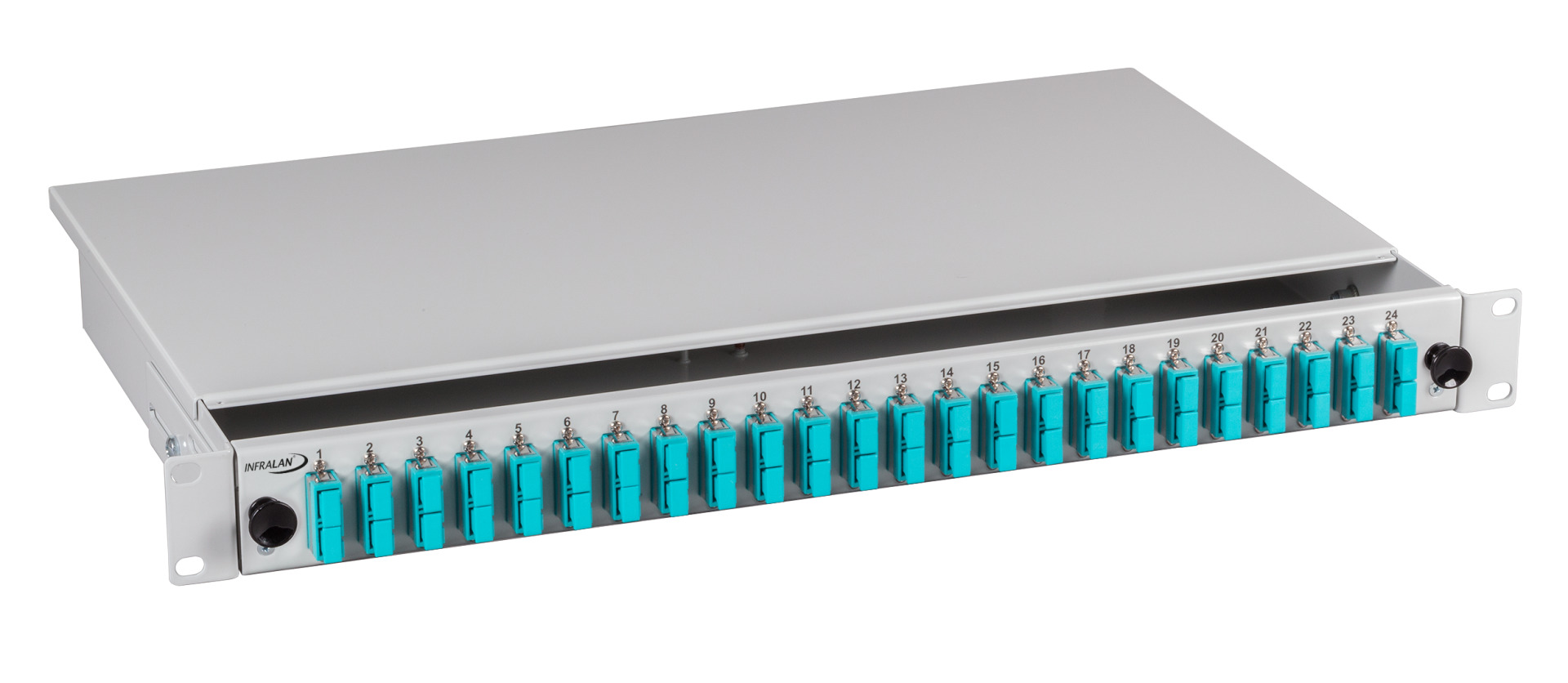

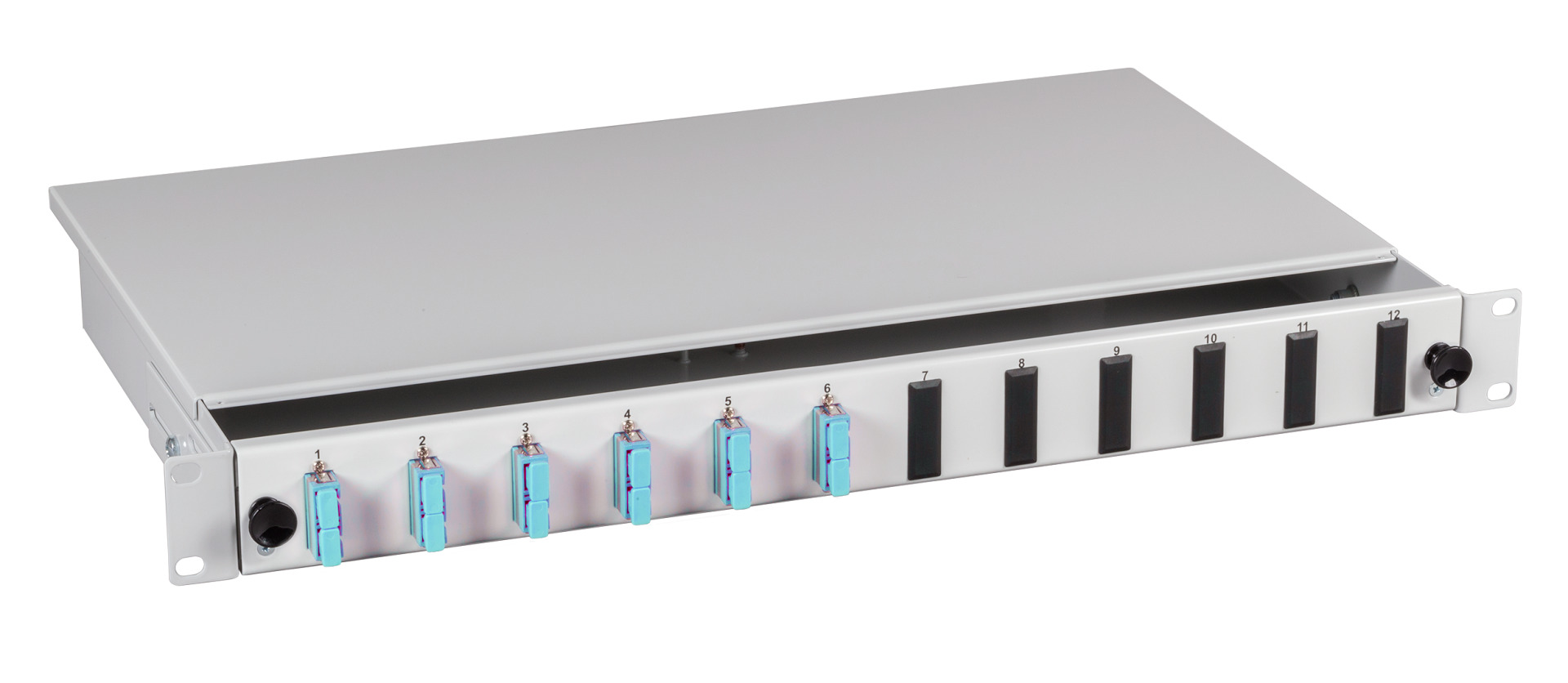

Splicebox sliding unit, with SC-Duplex plastic adapters and stripped pigtails, OS2
Splicebox SC-APC 9/125µ OS2 extendable 24 Pigtails stripped/12 Adapter
Item number:
BA71228.24
EAN no.:
4049759174675
Product information for Splicebox SC-APC 9/125µ OS2 extendable 24 Pigtails stripped/12 Adapter
completely assembled splice box with adapters and coloured pigtails.
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC |
| Depth: | 244.0 mm |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | stripped |
| Sliding: | sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Colour | Type of connector external | Suitable for number of couplings/adapters | With number of couplings/adapters | Pigtail | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| BA71223.12 | Splicebox SC 9/125µ OS2 extendable 12 Pigtails stripped/6 Adapter | grey | SC-Duplex | 12 | 6 | 12 x SC | 7035 | SC-Duplex | blau | |
| BA71223.24 | Splicebox SC 9/125µ OS2 extendable 24 Pigtails stripped/12 Adapter | grey | SC-Duplex | 12 | 12 | 24 x SC | 7035 | SC-Duplex | blau | |
| BA71223.48 | Splicebox SC 9/125µ OS2 extendable 48 Pigtails stripped/24 Adapter | grey | SC-Duplex | 24 | 24 | 48 x SC | 7035 | SC-Duplex | blau | |
| BA71223TS.24 | Splicebox bk SC 9/125µ OS2 extendable 24 Pigtails stripped/12 Adapter | black | SC-Duplex | 12 | 12 | 24 x SC | 9005 | SC-Duplex | blau | |
| BA71223TS.48 | Splicebox bk SC 9/125µ OS2 extendable 48 Pigtails stripped/24 Adapter | black | SC-Duplex | 24 | 24 | 48 x SC | 9005 | SC-Duplex | blau | |
| BA71228.24 | Splicebox SC-APC 9/125µ OS2 extendable 24 Pigtails stripped/12 Adapter | grey | SC-Duplex | 12 | 12 | 24 x SC-APC | 7035 | SC-Duplex | grün | |
| BA71228.48 | Splicebox SC-APC 9/125µ OS2 extendable 48 Pigtails stripped/24 Adapter | grey | SC-Duplex | 24 | 24 | 48 x SC-APC | 7035 | SC-Duplex | grün | |
| BA71228TS.24 | Splicebox bk SC-APC 9/125µ OS2 extendable 24 Pigtails stripped/12 Adapter | black | SC-Duplex | 12 | 12 | 24 x SC-APC | 7035 | SC-Duplex | grün | |
| BA71228.12 | Splicebox SC-APC 9/125µ OS2 extendable 12 Pigtails stripped/6 Adapter | grey | SC-Duplex | 12 | 6 | 12 x SC/APC | - | SC-Duplex | grün |
