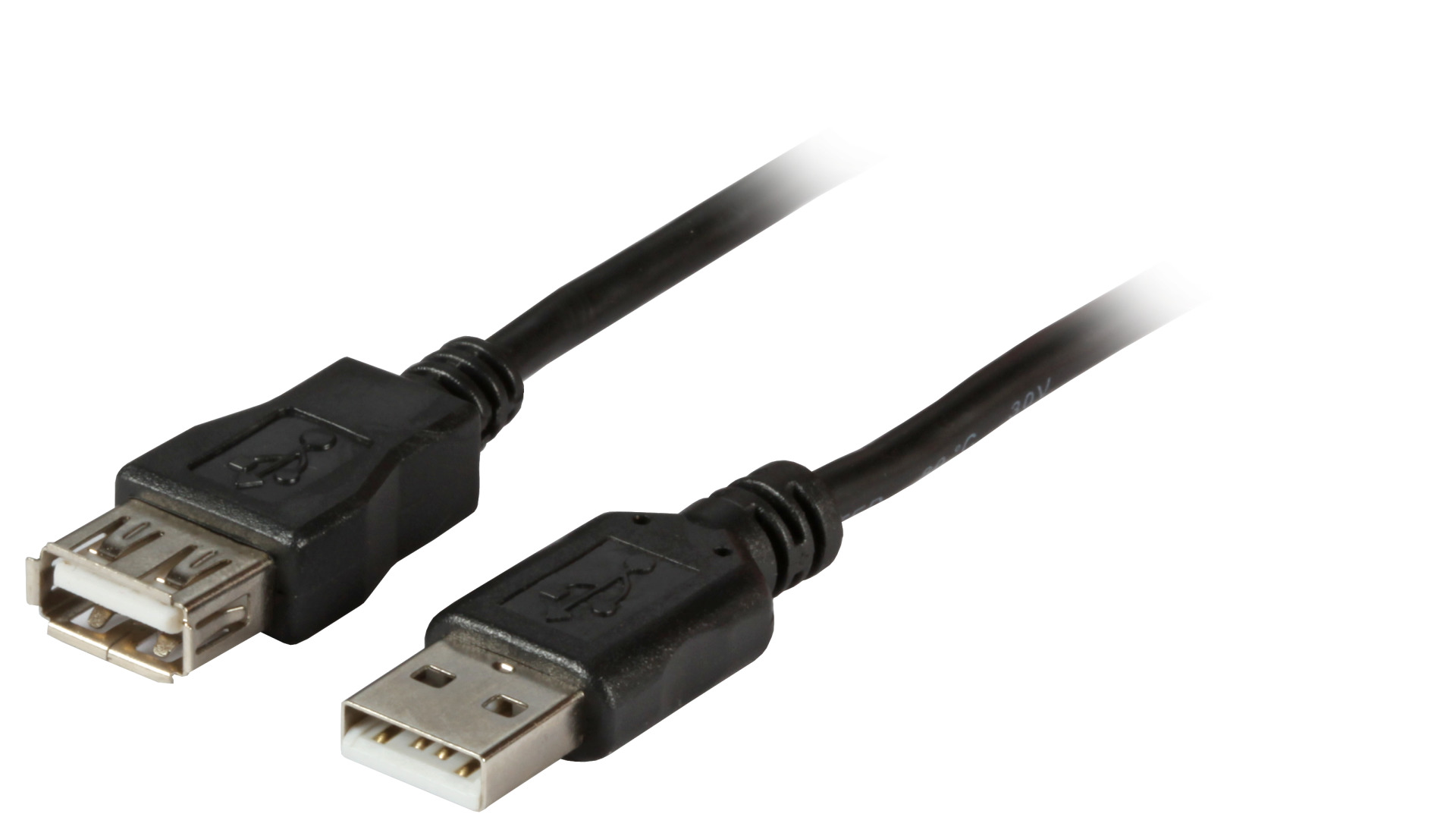

USB2.0 Extension Cable Plug Type A to Type A Jack, Classic
USB2.0 Extension Cable A-A, M-F, 1.8m, grey, Enhanced
Item number:
K5248.1,8V2
EAN no.:
4049759246297
Product information for USB2.0 Extension Cable A-A, M-F, 1.8m, grey, Enhanced
Supports data transmission rates up to 480 Mbit/s. Wire diameter: AWG28 / AWG24. Shielded: folie + braiding. Plug moulded.
Technical properties
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| CEC: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | False |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Jack |
| Contact Plating: | Nickel-plated |
| DSC: | False |
| Dust cover: | false |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | False |
| MSA: | False |
| MST: | False |
| Model: | Round Cable |
| Number of poles connection 1: | 4 |
| Number of poles connection 2: | 4 |
| Number of shieldings: | double |
| Operating temperature: | -5 – 45 °C |
| PCIe Data transfer: | False |
| Printing: | www.efb-elektronik.de |
| Scope of delivery: | 1 x USB Cable |
| Shielded: | True |
| Storage Temperature: | -20 – 60 °C |
| Supported protocols / functions: | USB OTG |
| Type of connector connection 1: | USB-A |
| Type of connector connection 2: | USB-A |
| Type of packaging: | plastic bag |
| VESA certified: | False |
| VRR: | False |
| Warranty: | 12 months |
| With termination resistor: | False |
| eARC: | False |
Variants
| Item no. | Name | Color | Length | Diameter | AWG | |
|---|---|---|---|---|---|---|
| K5248.1,5V2 | USB2.0 Extension Cable A-A, M-F, 1.5m, grey, Enhanced | grey | 1.5 m | - | - | |
| K5248.1,8V2 | USB2.0 Extension Cable A-A, M-F, 1.8m, grey, Enhanced | grey | 1.8 m | 4.5 mm | 24+28AWG | |
| K5248.1V2 | USB2.0 Extension Cable A-A, M-F, 1.0m, grey, Enhanced | grey | 1.0 m | 4.5 mm | 24+28AWG | |
| K5248.3V2 | USB2.0 Extension Cable A-A, M-F, 3.0m, grey, Enhanced | grey | 3.0 m | 4.5 mm | 24+28AWG | |
| K5248.5V2 | USB2.0 Extension Cable A-A, M-F, 5.0m, grey, Enhanced | grey | 5.0 m | 4.5 mm | 24+28AWG | |
| K5248SW.0,5V2 | USB2.0 Extension Cable A-A, M-F, 0.5m, black, Enhanced | black | 0.5 m | 4.5 mm | 24+28AWG | |
| K5248SW.1,5V2 | USB2.0 Extension Cable A-A, M-F, 1.5m, black, Enhanced | black | 1.5 m | - | - | |
| K5248SW.1,8V2 | USB2.0 Extension Cable A-A, M-F, 1.8m, black, Enhanced | black | 1.8 m | 4.5 mm | 24+28AWG | |
| K5248SW.1V2 | USB2.0 Extension Cable A-A, M-F, 1 m, black, Enhanced | black | 1.0 m | 4.5 mm | 24+28AWG | |
| K5248SW.3V2 | USB2.0 Extension Cable A-A, M-F, 3.0m, black, Enhanced | black | 3.0 m | 4.5 mm | 24+28AWG | |
| K5248SW.5V2 | USB2.0 Extension Cable A-A, M-F, 5.0m, black, Enhanced | black | 5.0 m | 4.5 mm | 24+28AWG |
Safety instructions
Warning: Danger of tripping! If installed incorrectly, there is a risk of tripping.
