Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4
Prices only visible for logged in users

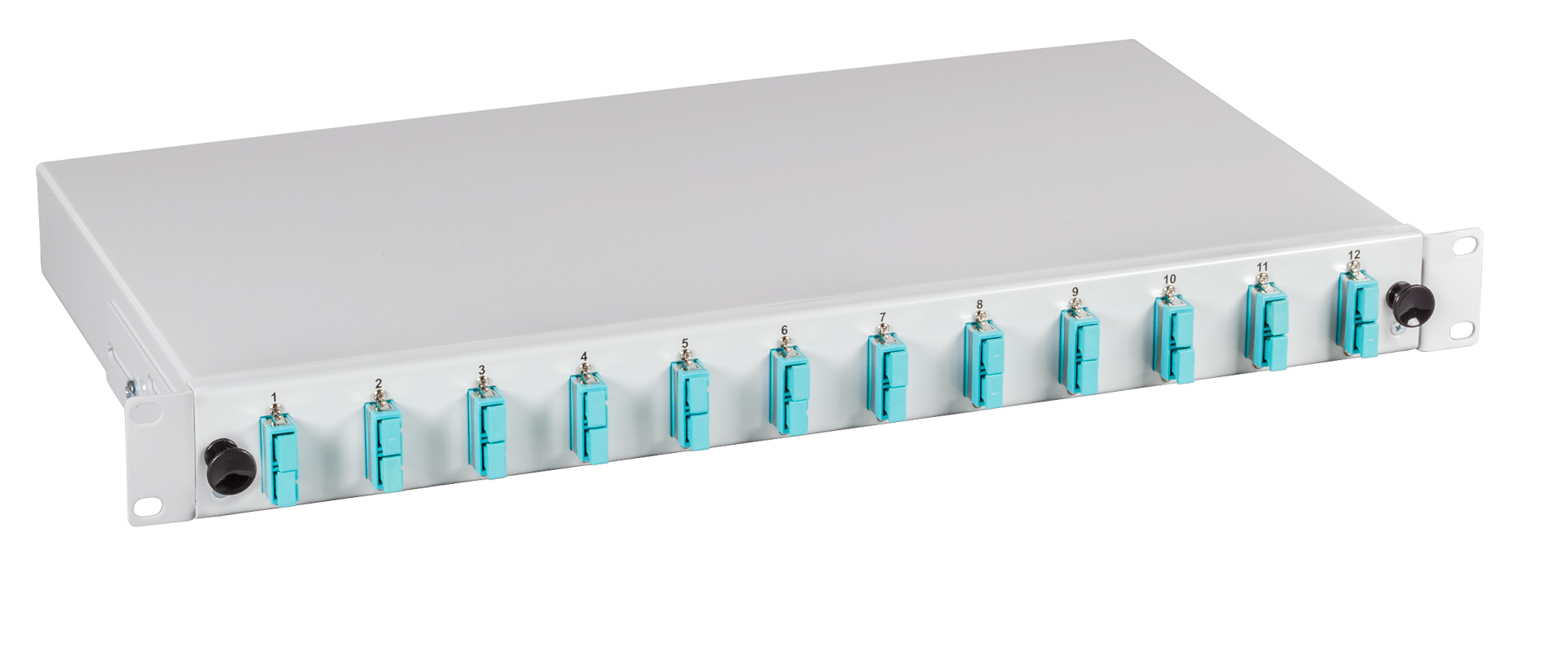

Splicebox bk SC 50/125µ OM4 extendable 24 Pigtails/12 Adapter
Item number:
B71203TS.24OM4
EAN no.:
4049759173715
Product information for Splicebox bk SC 50/125µ OM4 extendable 24 Pigtails/12 Adapter
completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC |
| Depth: | 244.0 mm |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Sliding: | sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Suitable for number of couplings/adapters | Type of connector external | With number of couplings/adapters | Pigtail | Colour | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71203.12OM4 | Splicebox SC 50/125µ OM4 extendable 12 Pigtails/6 Adapter | 12 | SC-duplex | 6 | 12 x SC | grey | 7035 | SC-Duplex | violett | |
| B71203.24OM4 | Splicebox SC 50/125µ OM4 extendable 24 Pigtails/12 Adapter | 12 | SC-duplex | 12 | 24 x SC | grey | 7035 | SC-Duplex | violett | |
| B71203.48OM4 | Splicebox SC 50/125µ OM4 extendable 48 Pigtails/24 Adapter | 24 | SC-duplex | 24 | 48 x SC | grey | 7035 | SC-Duplex | violett | |

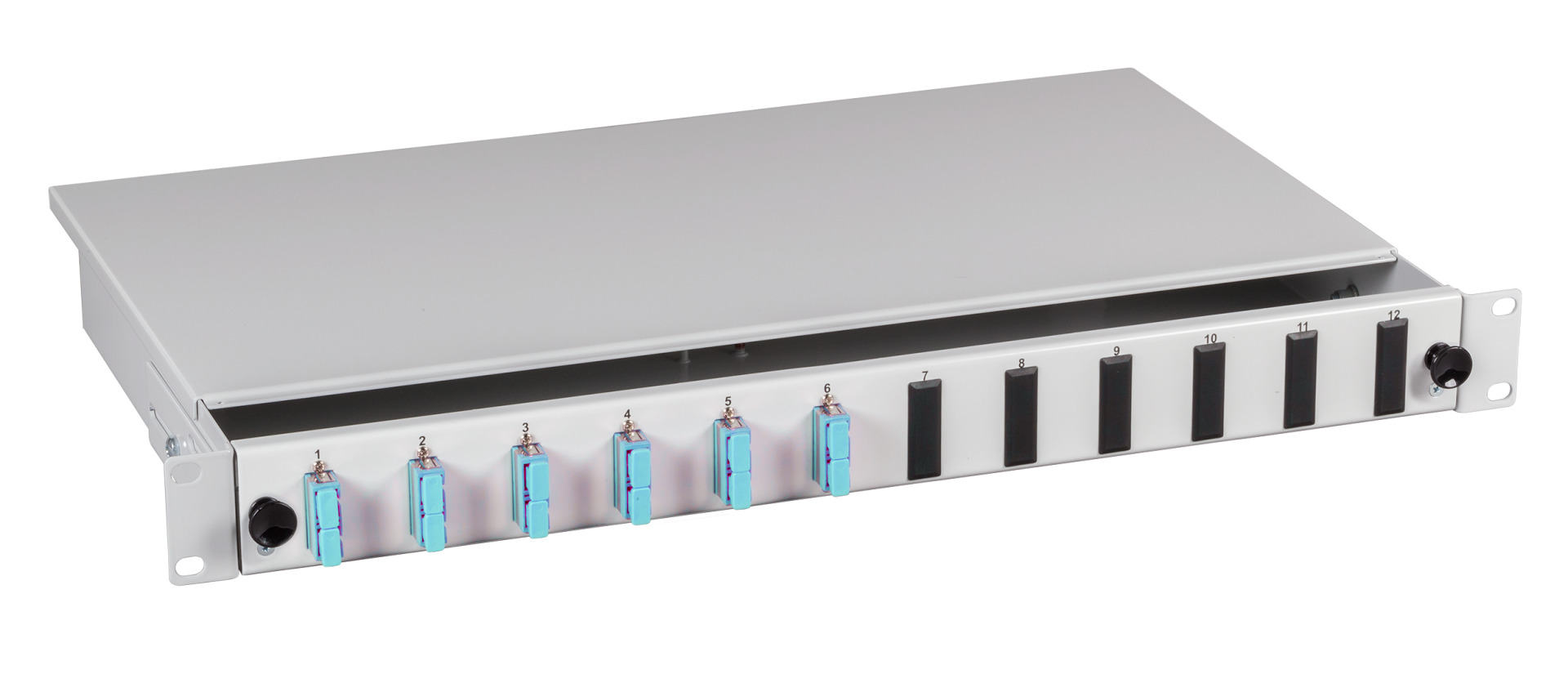

| B71203TS.12OM4 | Splicebox bk SC 50/125µ OM4 extendable 12 Pigtails/6 Adapter | 12 | SC-duplex | 6 | 12 x SC | black | 9005 | SC-Duplex | violett | |
| B71203TS.24OM4 | Splicebox bk SC 50/125µ OM4 extendable 24 Pigtails/12 Adapter | 12 | SC-duplex | 12 | 24 x SC | black | 9005 | SC-Duplex | violett | |

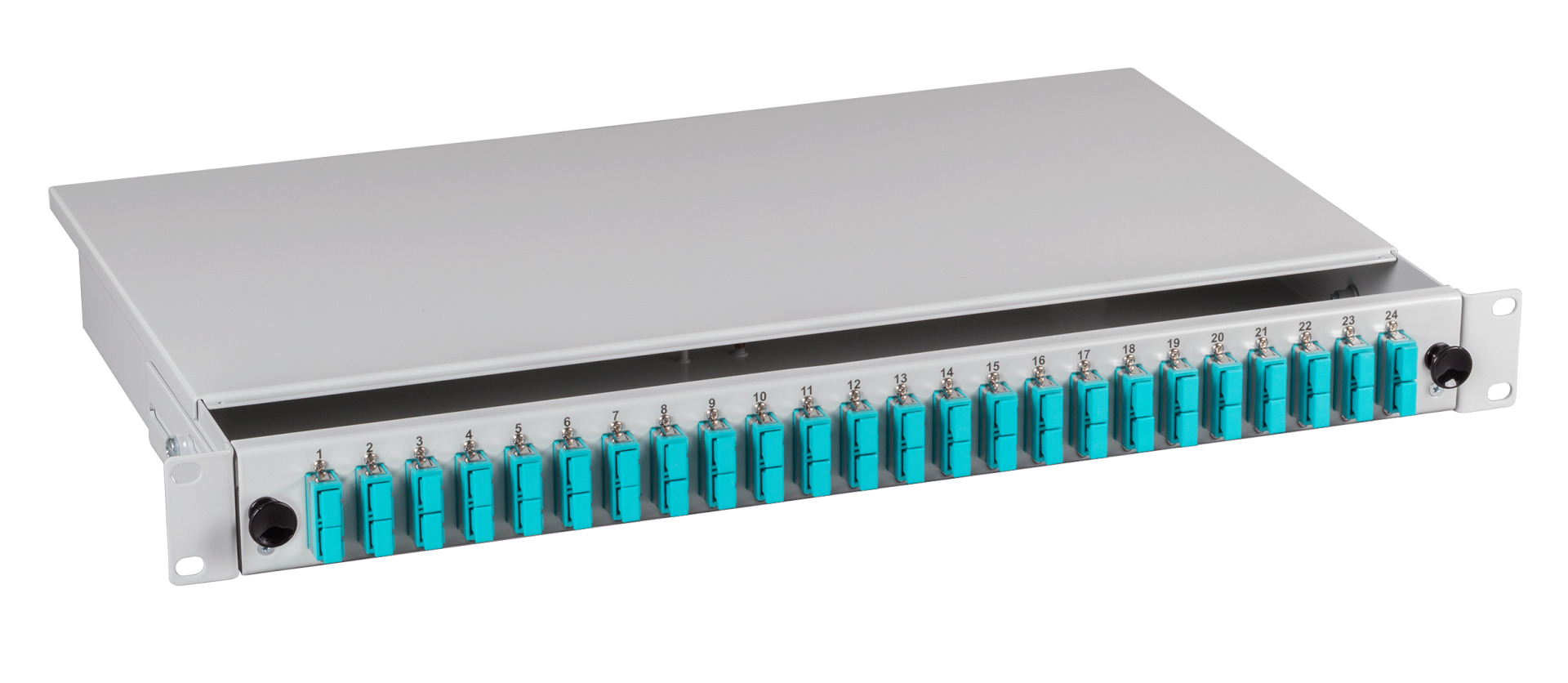

| B71203TS.48OM4 | Splicebox bk SC 50/125µ OM4 extendable 48 Pigtails/24 Adapter | 24 | SC-duplex | 24 | 48 x SC | black | 9005 | SC-Duplex | violett |
