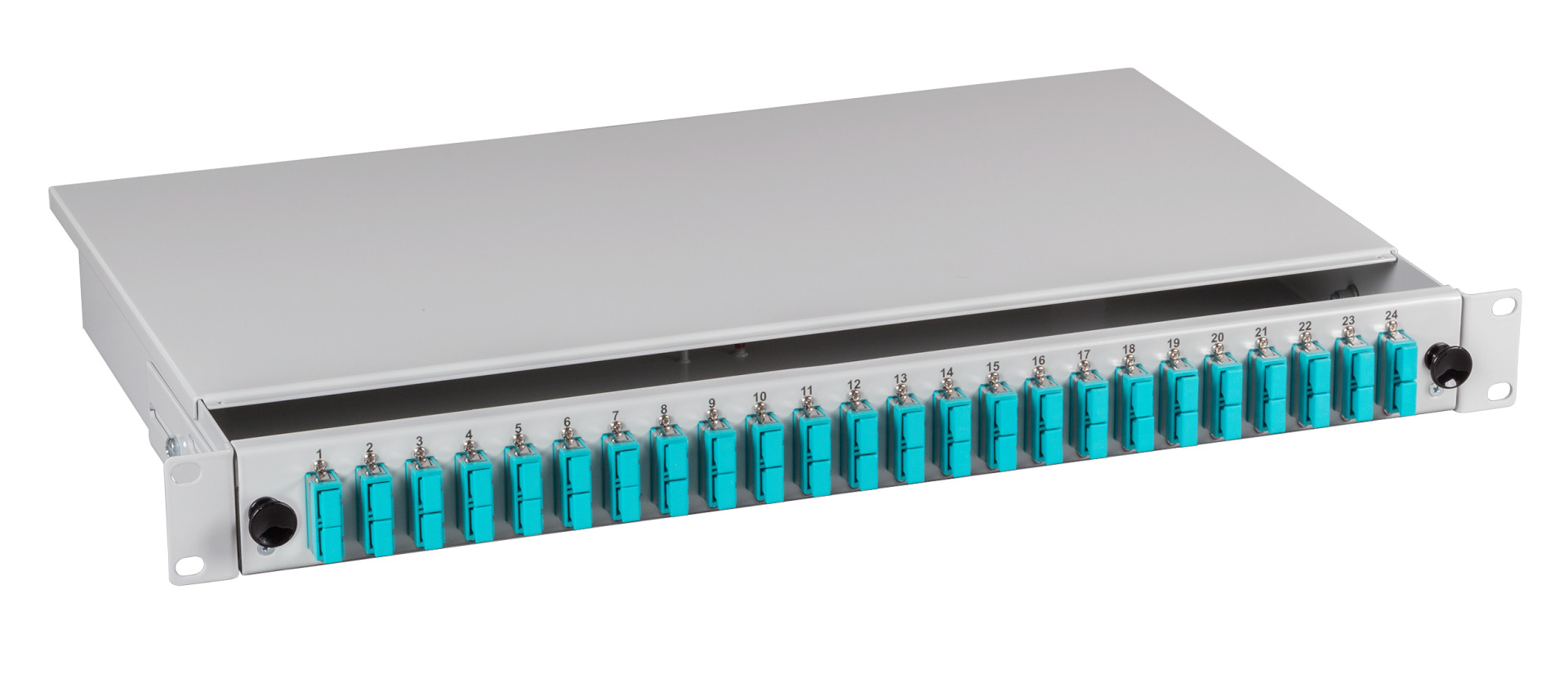

Splicebox sliding unit, with SC-Duplex plastic adapters and stripped pigtails, OM2
Splicebox SC 50/125µ OM2 extendable 48 Pigtails stripped/24 Adapter
Item number:
BA71203.48
EAN no.:
4049759043650
Product information for Splicebox SC 50/125µ OM2 extendable 48 Pigtails stripped/24 Adapter
completely assembled splice box with adapters and coloured pigtails.
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC |
| Depth: | 244.0 mm |
| Extendable: | sliding version |
| Fibre class: | OM2 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Variants
| Item no. | Name | Color | Suitable for number of couplings/adapters | Type of connector external | Pigtail | With number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|---|

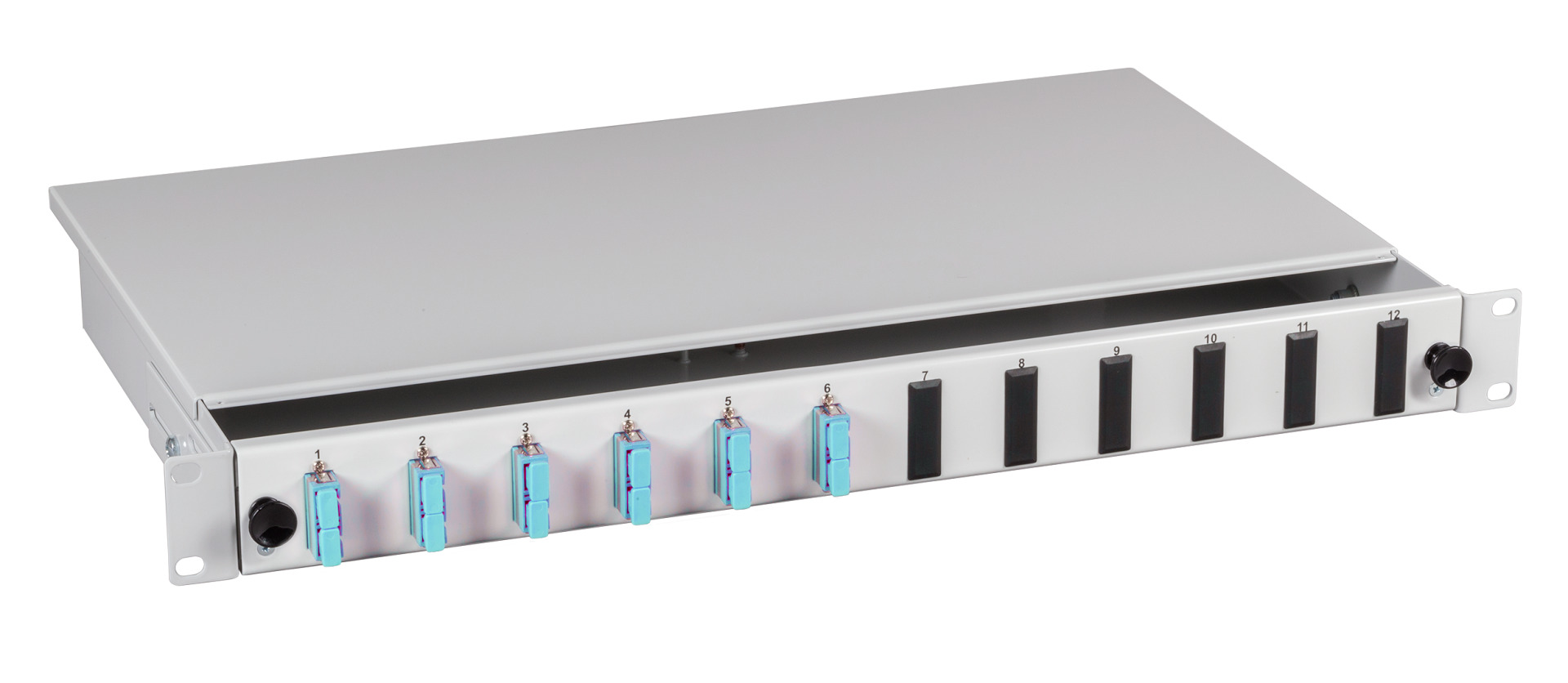

| BA71203.12 | Splicebox SC 50/125µ OM2 extendable 12 Pigtails stripped/6 Adapter | grey | 12 | SC-Duplex | 12 x SC | 6 | 7035 | SC-duplex | beige | |

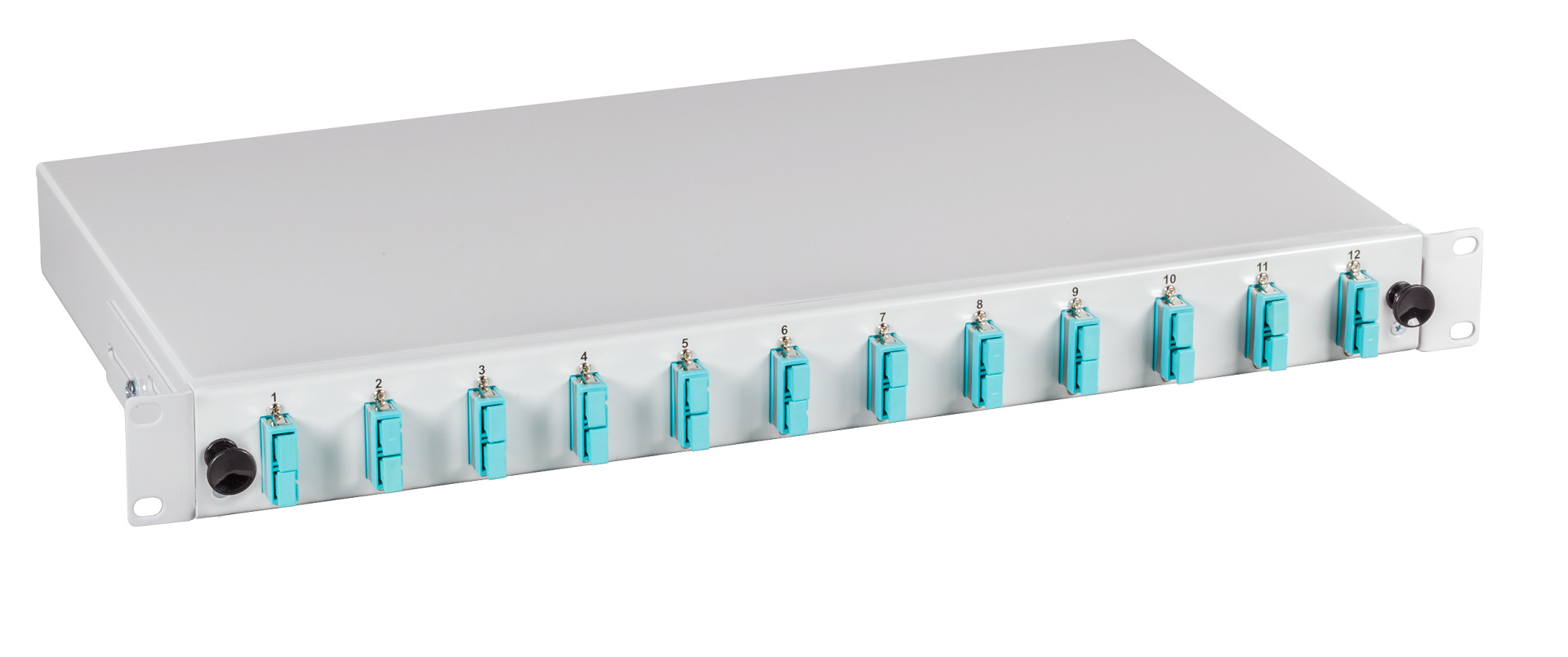

| BA71203.24 | Splicebox SC 50/125µ OM2 extendable 24 Pigtails stripped/12 Adapter | grey | 12 | SC-Duplex | 24 x SC | 12 | 7035 | SC-duplex | beige | |
| BA71203.48 | Splicebox SC 50/125µ OM2 extendable 48 Pigtails stripped/24 Adapter | grey | 24 | SC-Duplex | 48 x SC | 24 | 7035 | SC-duplex | beige |
