Splicebox with ST metal adapter and pigtails, OM1
Prices only visible for logged in users

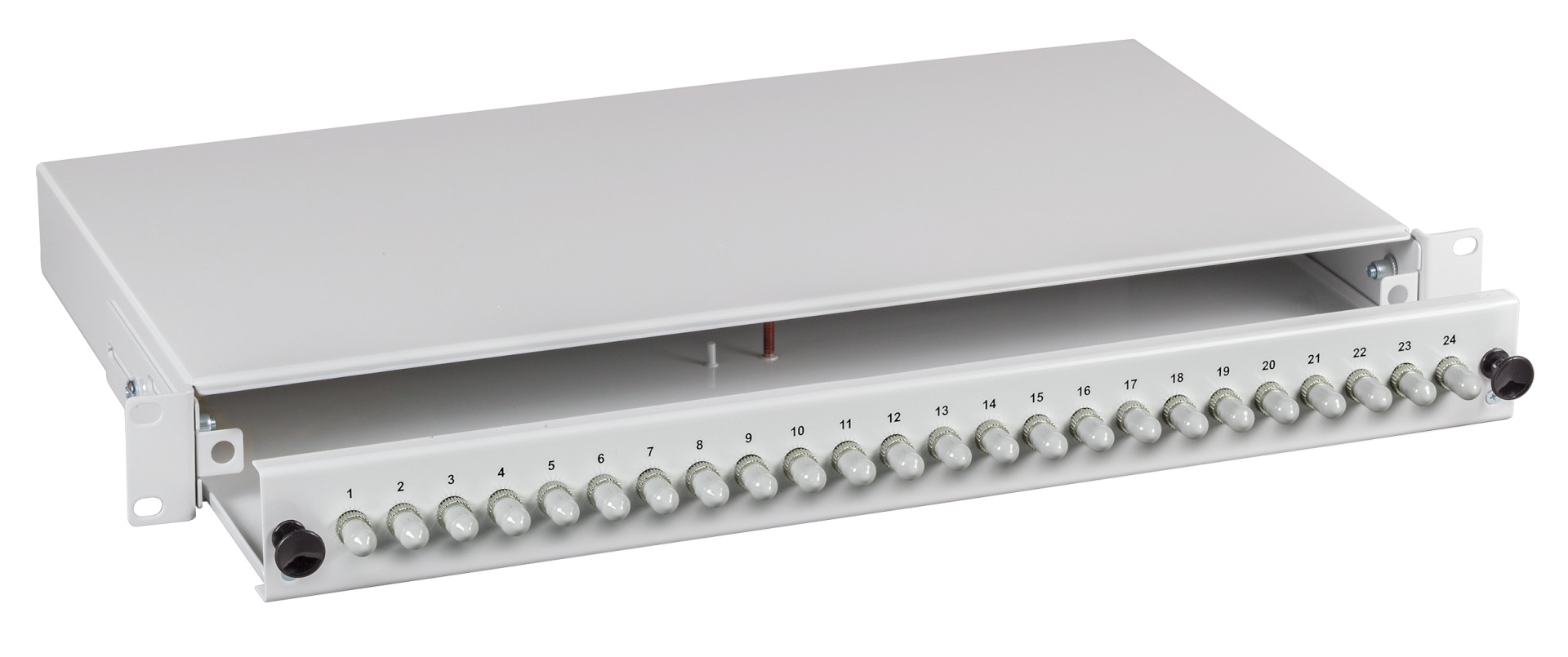

Splicebox ST 62.5/125µ OM1 not extendable 24 Pigtails/24 Adapter
Item number:
B70016.24
EAN no.:
4049759040857
Product information for Splicebox ST 62.5/125µ OM1 not extendable 24 Pigtails/24 Adapter

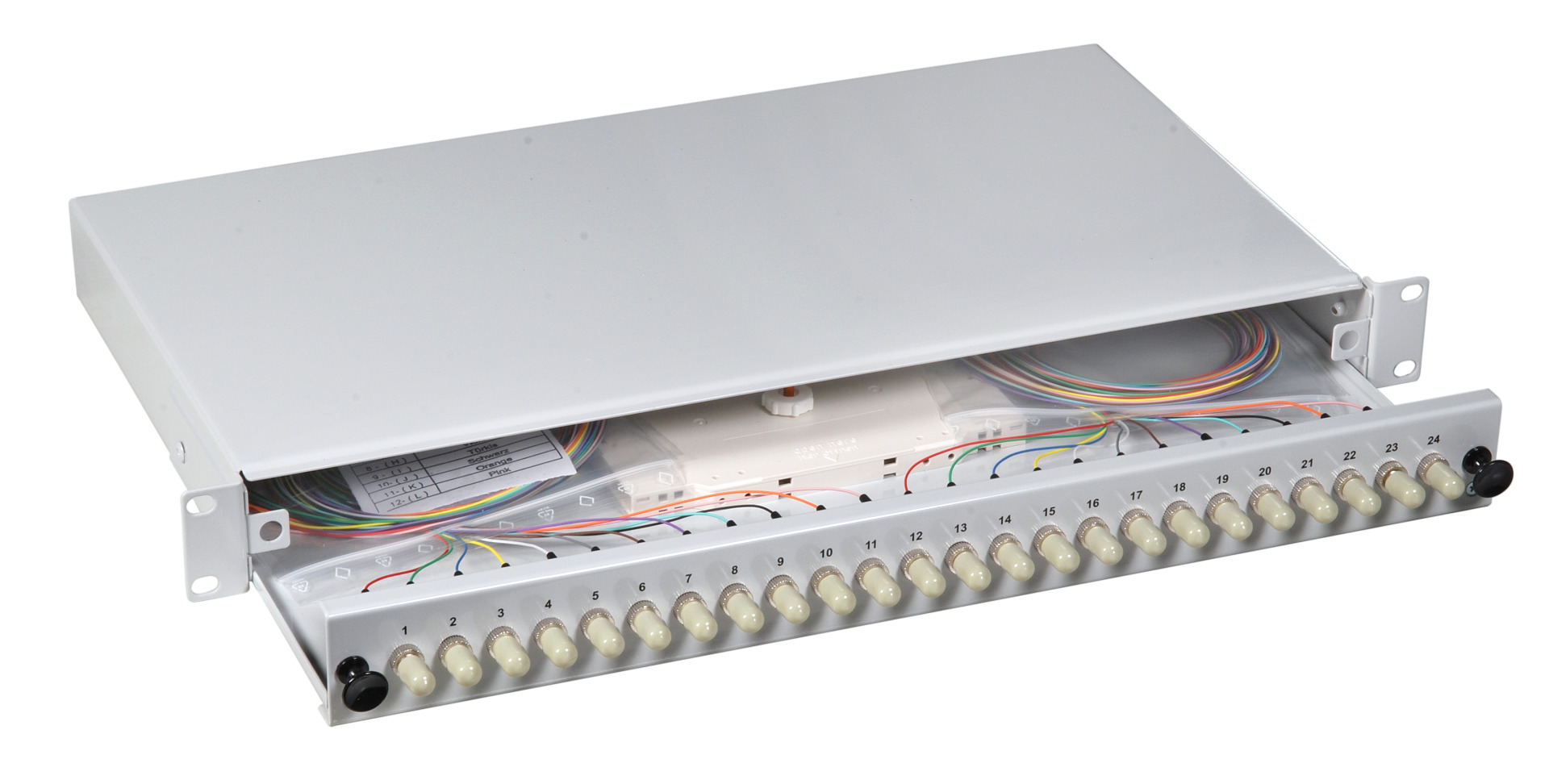

completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Metall adapter |
|---|---|
| Adapters: | ST |
| Depth: | 244.0 mm |
| Fibre class: | OM1 |
| Fibre type: | Multi mode 62.5/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Sliding: | non sliding version |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Variants
| Item no. | Name | Colour | Type of connector external | Pigtail | With number of couplings/adapters | Suitable for number of couplings/adapters | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| B70016.12 | Splicebox ST 62.5/125µ OM1 not extendable 12 Pigtails/12 Adapter | grey | ST | 12 x ST | 12 | 12 | 7035 | ST | metall | |
| B70016.24 | Splicebox ST 62.5/125µ OM1 not extendable 24 Pigtails/24 Adapter | grey | ST | 24 x ST | 24 | 24 | 7035 | ST | metall |
