Splicebox with LC-Duplex plastic adapter and pigtails, OM3
Prices only visible for logged in users

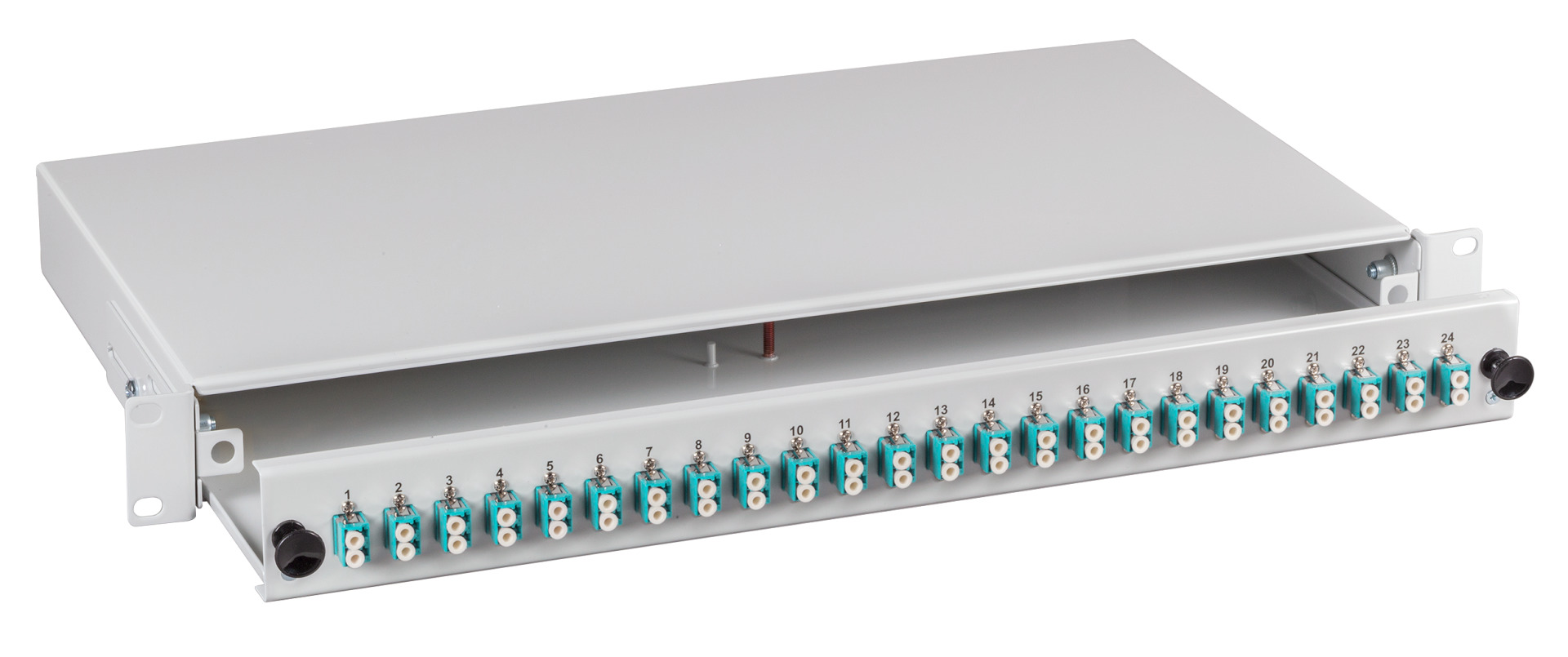

Splicebox LC 50/125µ OM3 not extendable 48 Pigtails/24 Adapter
Item number:
B70901.48OM3
EAN no.:
4049759109974
Product information for Splicebox LC 50/125µ OM3 not extendable 48 Pigtails/24 Adapter
completely assembled splice box with adapters and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
Adapter material: | Plastic adapter |
---|---|
Adapters: | LC |
Depth: | 244.0 mm |
Fibre class: | OM3 |
Fibre type: | Multi mode 50/125 |
Height: | 44.5 mm |
Mounting method: | 482.6 mm (19 inch) mounting |
Number of height units: | 1 U |
Pigtails prepared: | not stripped |
Sliding: | non sliding version |
Width: | 483.0 mm |
With front plate: | True |
With housing: | True |
With pigtails: | True |
Variants
Item no. | Name | Suitable for number of couplings/adapters | With number of couplings/adapters | Pigtail | Type of connector external | Colour | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
---|---|---|---|---|---|---|---|---|---|---|
B70901.12OM3 | Splicebox LC 50/125µ OM3 not extendable 12 Pigtails/6 Adapter | 12 | 6 | 12 x LC | LC-duplex | grey | 7035 | LC-Duplex | aqua | |
B70901.24OM3 | Splicebox LC 50/125µ OM3 not extendable 24 Pigtails/12 Adapter | 12 | 12 | 24 x LC | LC-duplex | grey | 7035 | LC-Duplex | aqua | |
B70901.48OM3 | Splicebox LC 50/125µ OM3 not extendable 48 Pigtails/24 Adapter | 24 | 24 | 48 x LC | LC-duplex | grey | 7035 | LC-Duplex | aqua | |
B70901TS.12OM3 | Splicebox bk LC 50/125µ OM3 not extendable 12 Pigtails/ 6 Adapter | 12 | 6 | 12 x LC | LC-Duplex | black | 9005 | LC-Duplex | aqua | |
B70901TS.24OM3 | Splicebox bk LC 50/125µ OM3 not extendable 24 Pigtails/12 Adapter | 12 | 12 | 24 x LC | LC-Duplex | black | 9005 | LC-Duplex | aqua | |
B70901TS.48OM3 | Splicebox bk LC 50/125µ OM3 not extendable. 48 Pigtails/24 Adapter | 24 | 24 | 48 x LC | LC-Duplex | black | 9005 | LC-Duplex | aqua |
