Splicebox with SC-Duplex plastic adapter and pigtails, OS2

Prices only visible for logged in users

Splicebox SC 9/125µ OS2 not extendable 48 Pigtails/24 Adapter
Item number: B70223.48
EAN no.: 4049759041380
Piece

Product information for Splicebox SC 9/125µ OS2 not extendable 48 Pigtails/24 Adapter

completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!

Technical properties

Adapter material: Plastic adapter
Adapters: SC
Depth: 244.0 mm
Fibre class: OS2 acc. to ITU-T G.652.D
Fibre type: Single mode 9/125
Height: 44.5 mm
Mounting method: 482.6 mm (19 inch) mounting
Number of height units: 1 U
Pigtails prepared: not stripped
Sliding: non sliding version
Width: 483.0 mm
With front plate: True
With housing: True
With pigtails: True

Variants

Item no. Name Type of connector external Colour Suitable for number of couplings/adapters With number of couplings/adapters Pigtail RAL-Nummer Steckverbindertyp innen Kupplungsfarbe

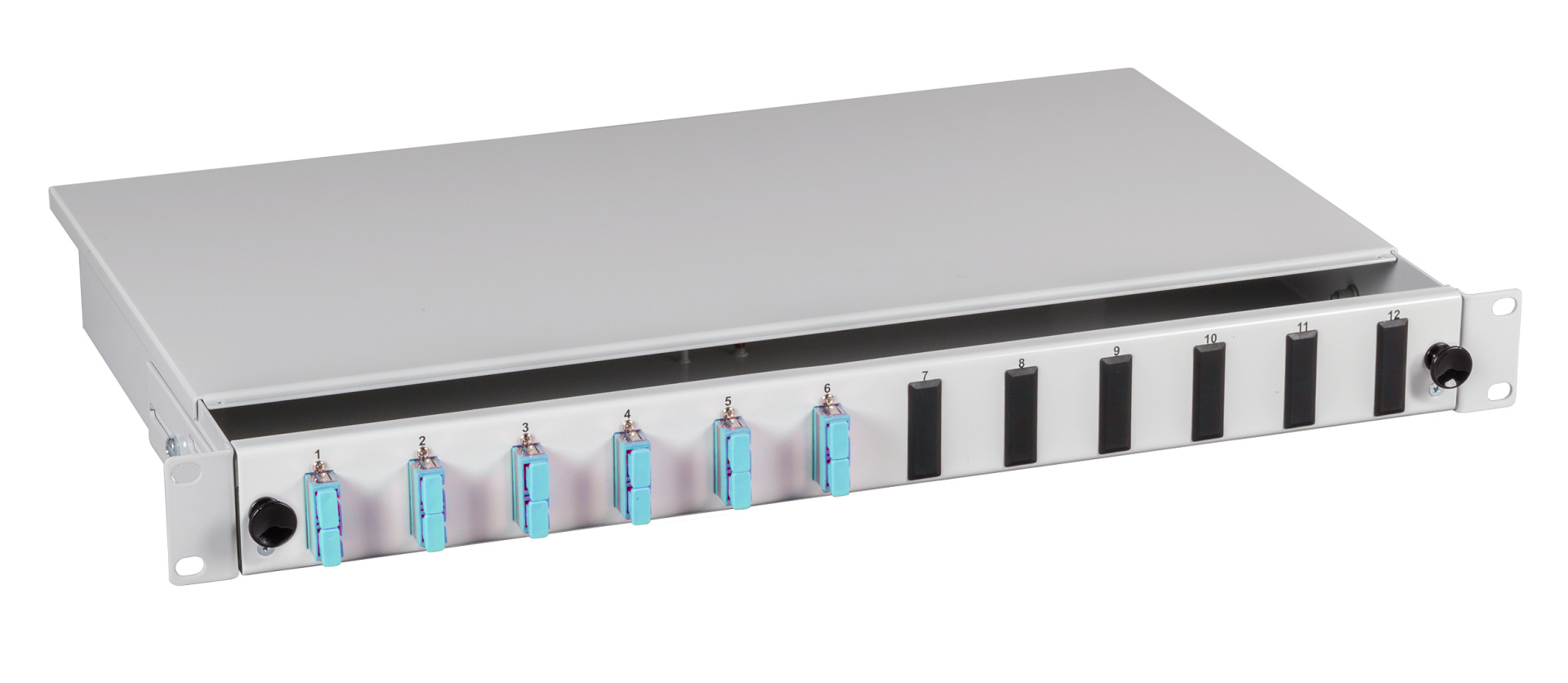

B70223.12 Splicebox SC 9/125µ OS2 not extendable 12 Pigtails/6 Adapter SC-duplex grey 12 6 12 x SC 7035 SC-Duplex blau

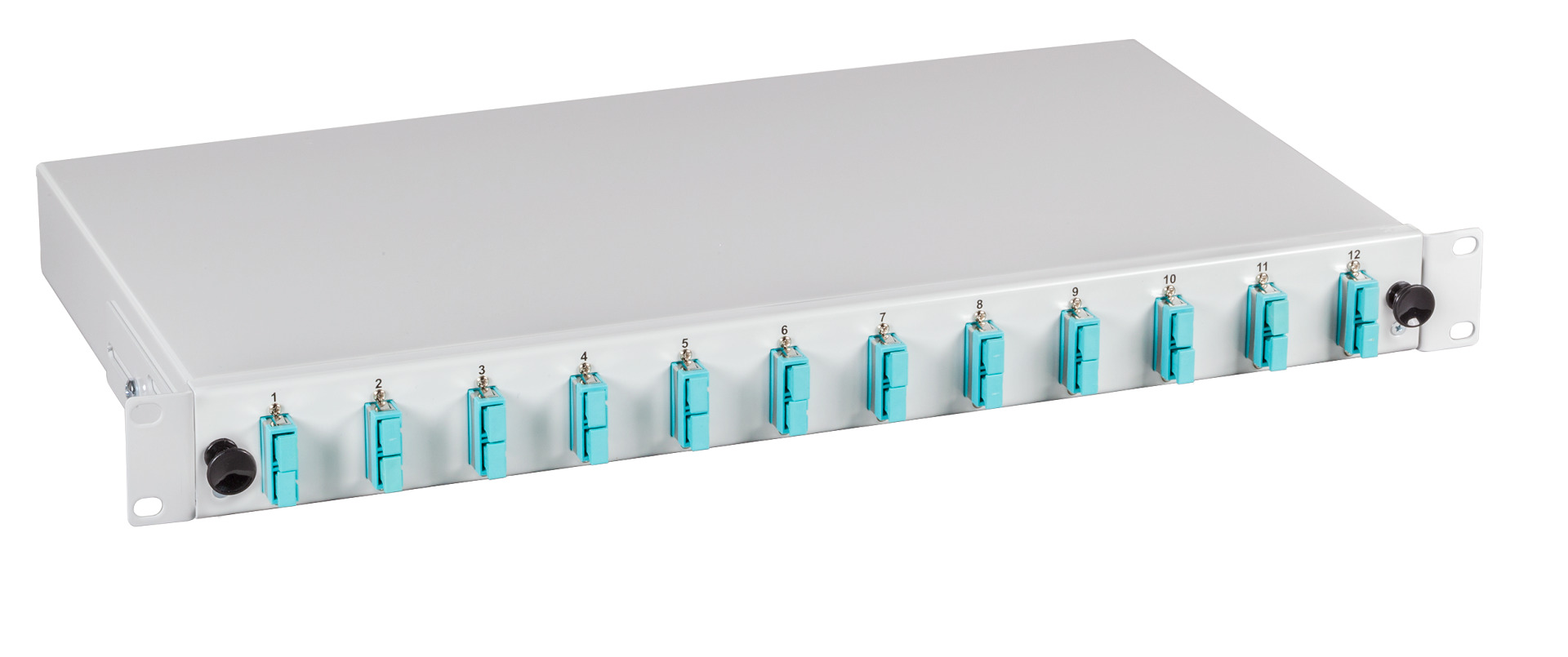

B70223.24 Splicebox SC 9/125µ OS2 not extendable 24 Pigtails/12 Adapter SC-duplex grey 12 12 24 x SC 7035 SC-Duplex blau

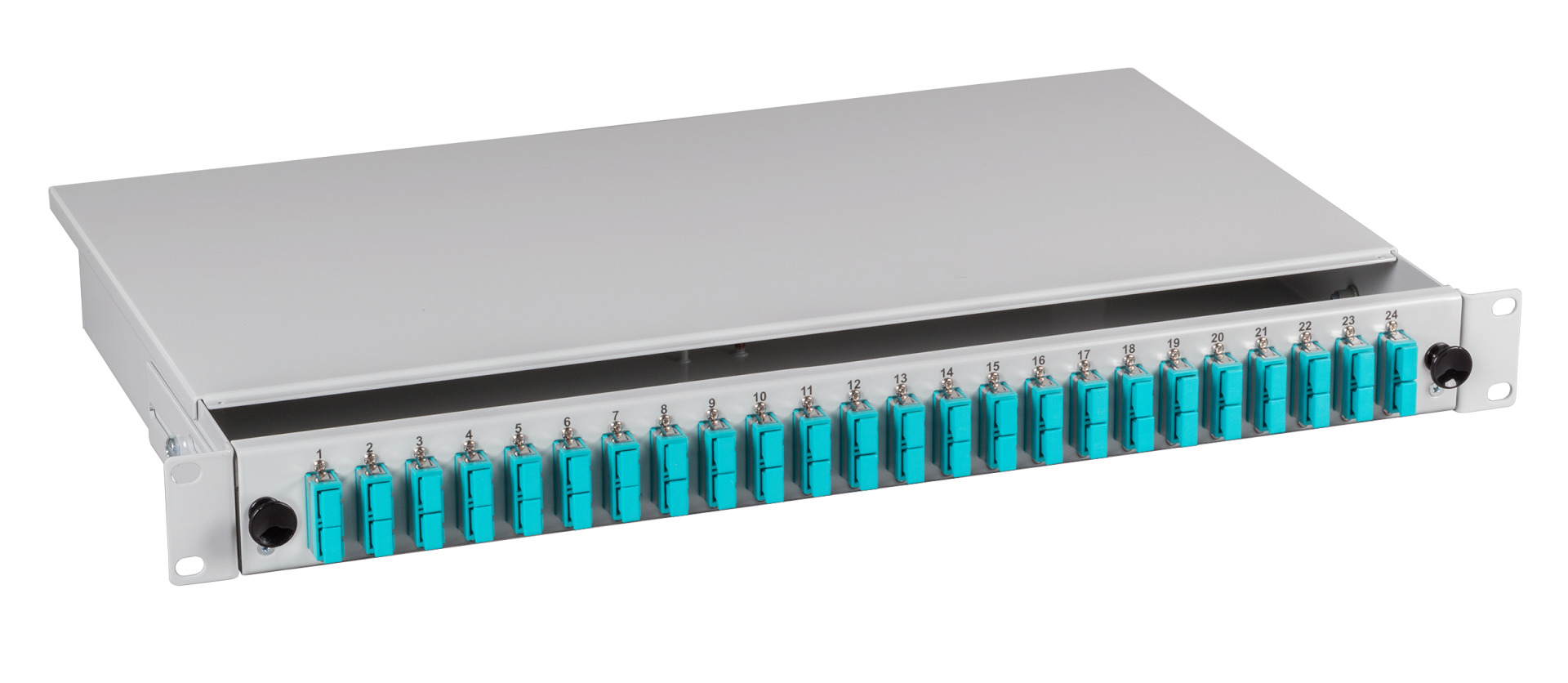

B70223.48 Splicebox SC 9/125µ OS2 not extendable 48 Pigtails/24 Adapter SC-duplex grey 24 24 48 x SC 7035 SC-Duplex blau
